WZV2

with electromagnetic unlocking

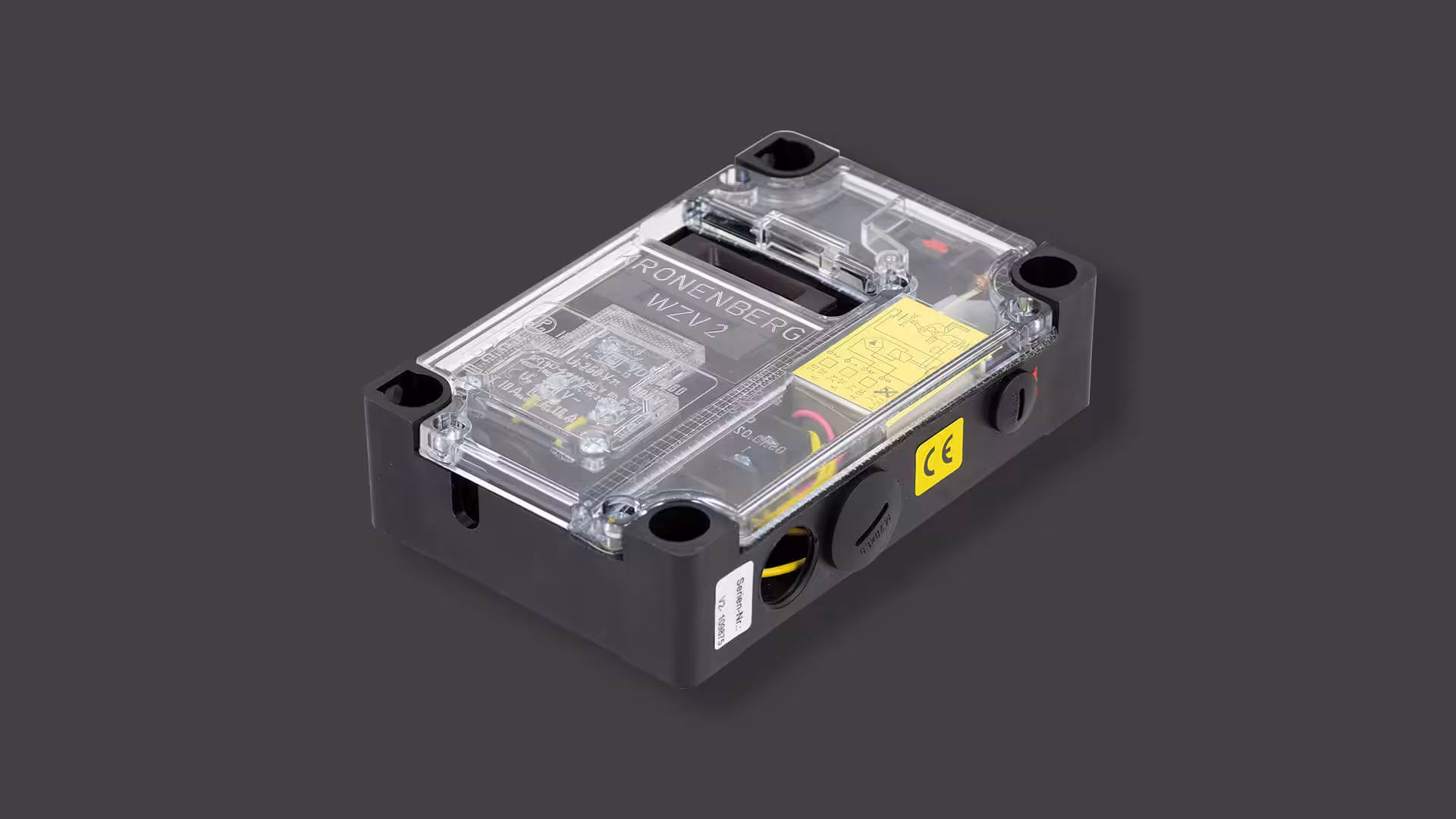

The water protected safety switch WZV2 with separate actuator is a safety switch with forced actuation and equipped with a monitored locking mechanism. The actuator is mounted at the door leaf. A locking bolt engaging into the actuator prevents the door from opening. By energizing the integrated electromagnet the locking bolt is pulled out of the actuator and the door can be opened.

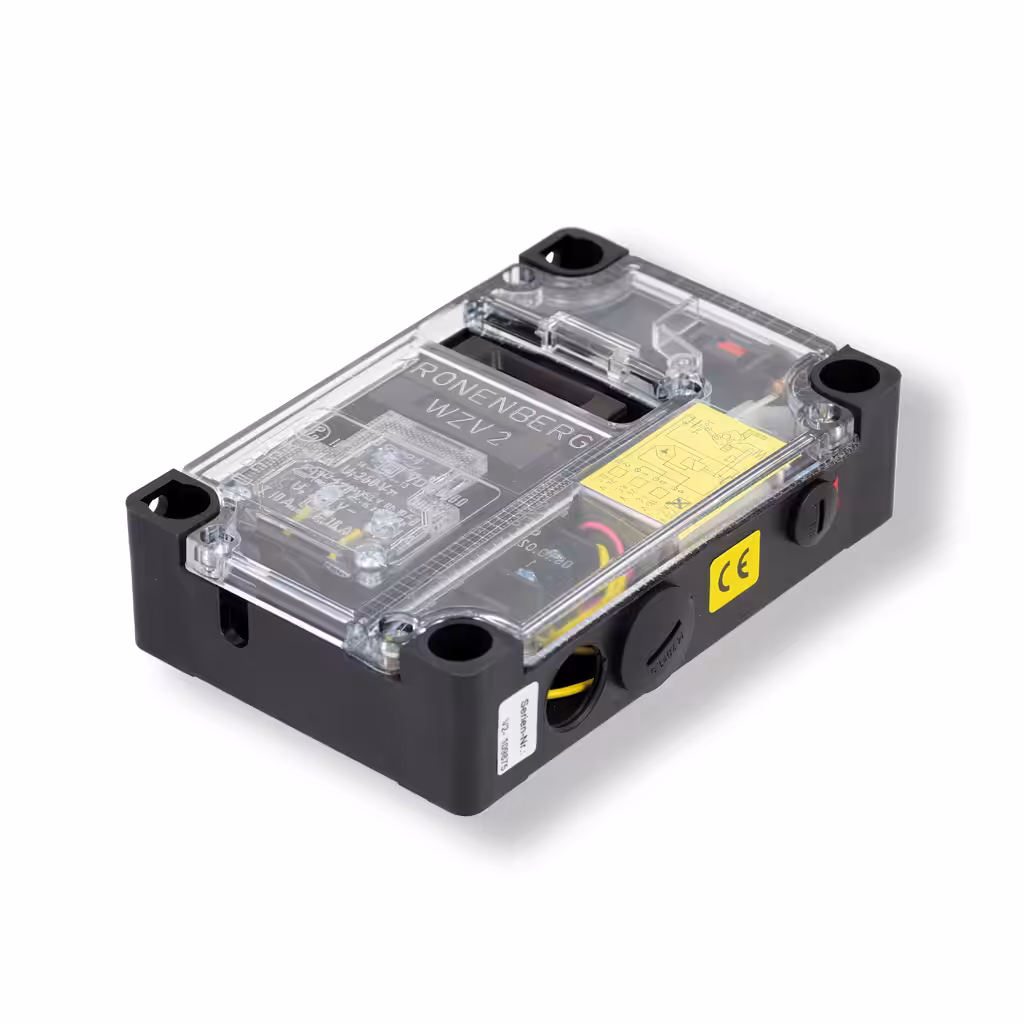

Safety switch WZFV2

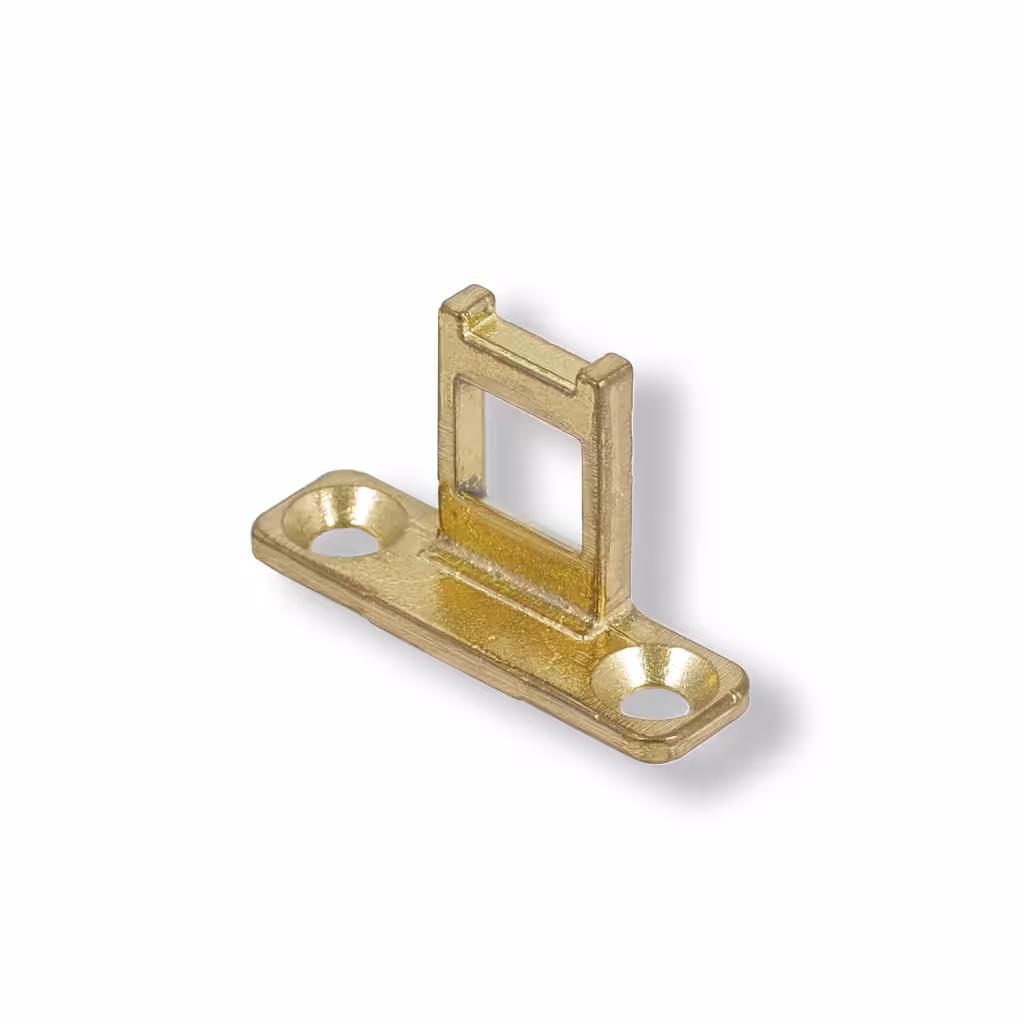

Actuatur BBV-MS for safety switch WZFV2

Dimensions WZFV2

Safety switch WZFV2

Actuatur BBV-MS for safety switch WZFV2

Dimensions WZFV2

Features:

locking by a locking bolt plunging into the actuator
position of locking bolt controlled electrically
unlocking by built-in electromagnet
possibility of auxiliary release at power failure

Order information codes:

Technical data:

norms	IEC/EN 60947-5-1, GS-ET 19, EN ISO 13489-1
switching capacity	Ui = 250 V Ith = 10 A Uimp = 4 kV AC-15: Ue = 230 V Ie = 6 A DC-13: Ue = 200 V Ie = 1 A AC-15: Ue = 24 V Ie = 10 A
magnet: magnet voltage (as option)	7.5 W 100% duty cycle AC: 230 V / 110 V / 24 V DC: 205 V / 24 V
short-circuit capacity	T10 A F 16 A
contact material	fine silver
actuation- / holding force	21 N / 1000 N
connection	by screw terminal max. 2.5 mm², two cable entries M20x1.5
level of protection	IP54
ambient air temperature	-30 °C up to +80 °C
installation position	any
B10d – value (10 % nominal load)	10 million / service life max. 25 years
weight	WZV2 = 480 g BBV-MS = 34 g BBV-KIPP = 31 g
