EMT13-W

for installation on the car roof

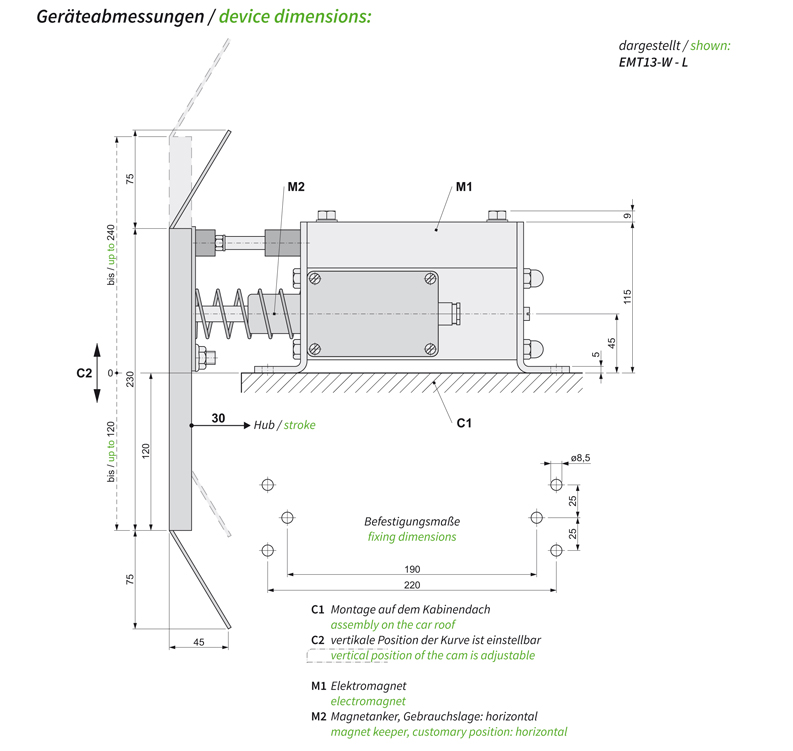

The electromagnetic retiring cam EMT13-W in level of protection IP54 is intended for installation on the car roof. The actuation cam is infinitely adjustable in height to adapt to the conditions on site. The force is slightly lower compared tot he EMT17.

EMT13-W

EMT13-W

Features

  • dust and water protected version, IP54
  • assembly on the car roof
  • all steel parts galvanized
  • quiet due to high absorption at switch on and switch off
  • robust and precise
  • vertical position of the cam is adjustable
  • changeable from left hand position to right hand position

Order information codes

Technical data

duty cycle 100%
stroke 30 mm
actuation force 40 N
pull-in / holding current 0.72 A / 0.21 A
actuation- / return force 0.8 N / 0.6 N
connection screw terminal and earthing bolt M4, cable gland Pg9
level of protection IP54
ambient air temperature 0 °C up to +40 °C (application at temperatures < 0 °C on request)
customary position magnet keeper horizontal
weight 6 kg
