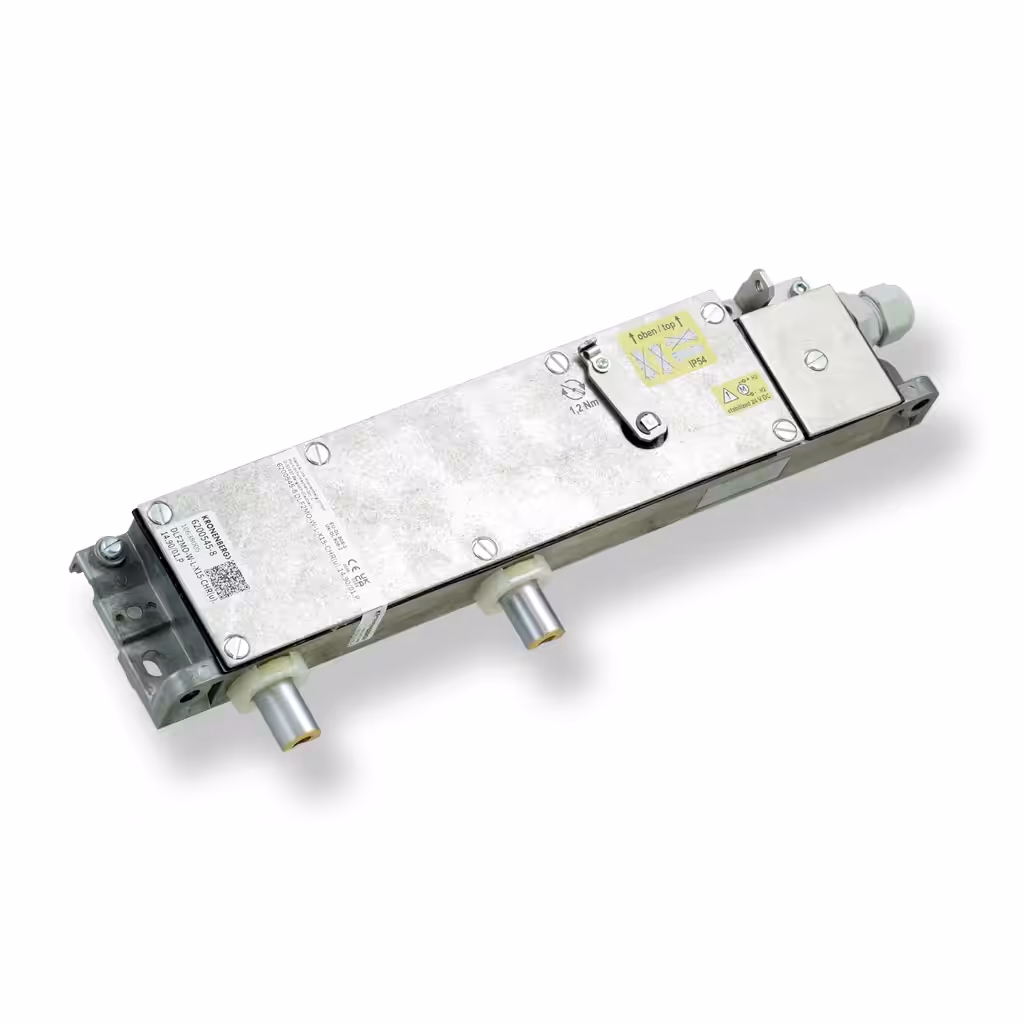

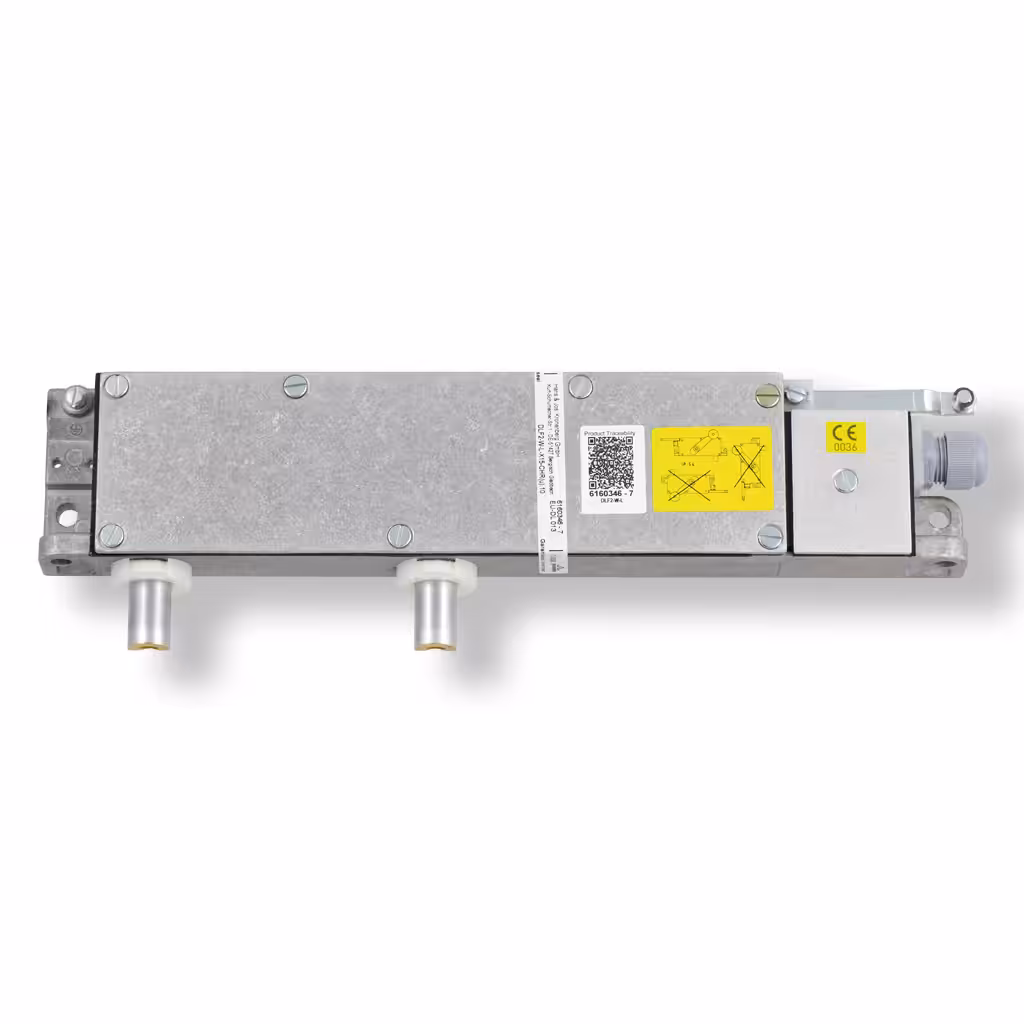

DL(F)2-W

Standard device for double-leaf doors with level of protection IP54

The standard door interlock for double swing doors in level of protection IP54 is equipped with a sealed metal cover and two hard chromed latch bolts to ensure water protection and corrosion protection.

DL(F)2-W

DL(F)2-W

DL(F)2-W

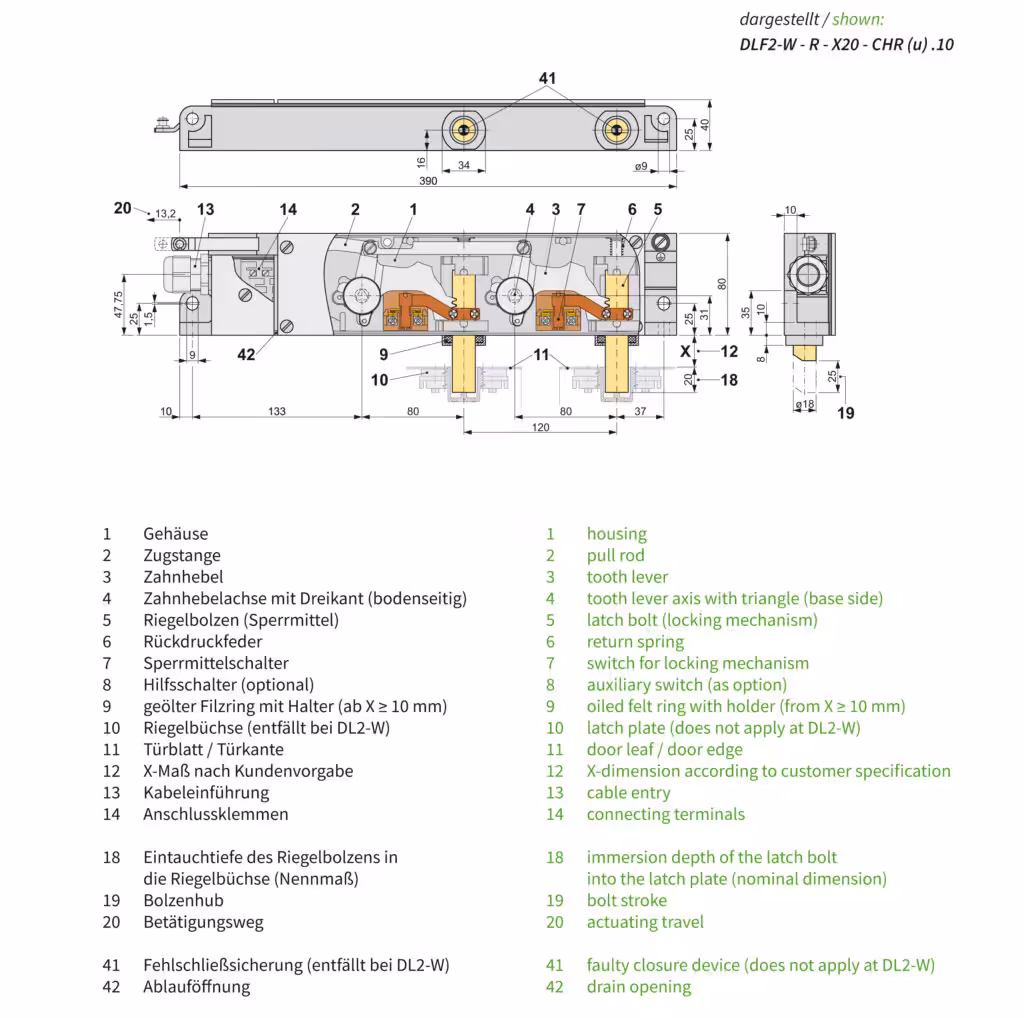

Features

general:

  • metal housing with high stability
  • silent due to buffers in both directions
  • maintenance-free by permanent lubrication with high quality lubricants (up to -30 °C)
  • oiled felt ring at latch bolt for lubrication as well as for sealing against dirt and dust (at X-dimension 10 mm)
  • constrained faulty closure at DLF2 for use in passenger lifts
  • contacts with solid fine silver plating for a reliable function even at low voltages and currents
  • auxiliary switch as normally closed and/or normally open contact with two galvanically isolated contacts possible
  • extensive range of accessories

special features:

  • water protection (IP54) at horizontal installation position
  • for double-leaf doors with two latch bolts for installation in the door post
  • metal cover with rubber seal instead of transparent cover
  • chromed latch bolt for better oxidation protection
  • terminal block with all electrical connections
  • connection for bowden cable or cable pull for actuation for unlocking available, e.g.
    application 1:unlocking from the pit ladder (< 1.80 m according to EN 81-20)
    application 2:offset emergency release triangle (< 2 m according to EN 81-20)
    application 3:actuation by bowden cable as alternative to pull rod

Order information codes

Technical data

norms EN 81-20, EN 81-50, EN 60947-5-1
certificates type approval certificate
EU-DL 013 (DLF2-W) and EU-DL 015 (DL2-W)
switching capacity:
switch for locking mechanism
auxiliary switch .9/…
Ui = 250 V Ith = 10 A Uimp = 4 kV
AC-15: Ue = 230 V Ie = 2 A DC-13: Ue = 200 V Ie = 2 A
AC-15: Ue = 230 V Ie = 2 A DC-13: Ue = 200 V Ie = 0.5 A
short-circuit capacity T 10 A F 16 A
contact material fine silver
actuation:
actuation force (typical)
max. force in non-operating state
65 N at the pull rod 29 N at the roller lever (with single bearing block E at 35 mm stroke)
6 N at the pull rod
connection by screw terminal max. 2.5 mm²
cable entry M25x1.5 with cable gland
level of protection IP54
ambient air temperature -10 °C up to +65 °C (special version up to -30 °C)
weight 1320 g to 1700 g (according to version)
