EMT19

with higher force and longer travel

The electromagnetic retiring cam EMT 19 is equipped with a considerable higher force and a longer travel in comparison to the version EMT 17. The assembly is made on the car roof.  The adjusting range of the actual cam is extraordinary high, because the sliding rail can be adjusted, too. Furthermore the cam can be rearranged from a left to right position.

Features

  • particularly high force and large stroke
  • wide range of adjustment of the rail
  • assembly on the car roof
  • all steel parts galvanized
  • quiet due to high absorption at switch on and switch off
  • very robust and precise
  • infinite variability of the cam

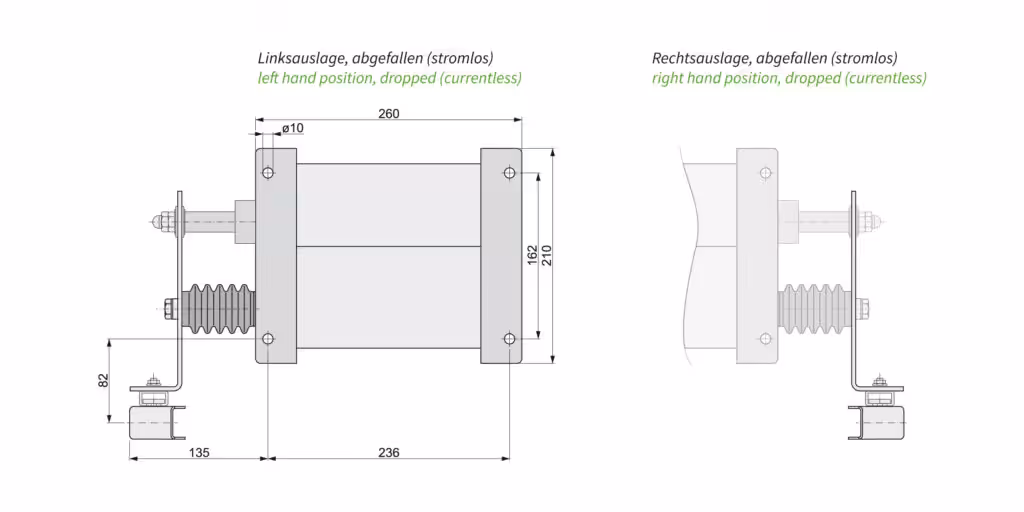

  • changeable from left hand position to right hand position

Order information codes

Technical data

duty cycle 100%
stroke 45 mm
actuation force 90 N
pull-in / holding current 0.7 A / 0.7 A
connection screw terminal and earthing bolt M4, cable gland Pg9
level of protection IP40
ambient air temperature 0 °C up to +40 °C (application at temperatures < 0 °C on request)
customary position magnet keeper horizontal
weight 15 kg
