EMT15K-W
with smaller installation depth
At the electromagnetic retiring cam EMT15K-W in level of protection IP54 the magnet is arranged above the actual cam. In this way, a smaller installation depth is realised. This version is ideally suited for confined spaces. The force is slightly lower compared to the EMT17-W.

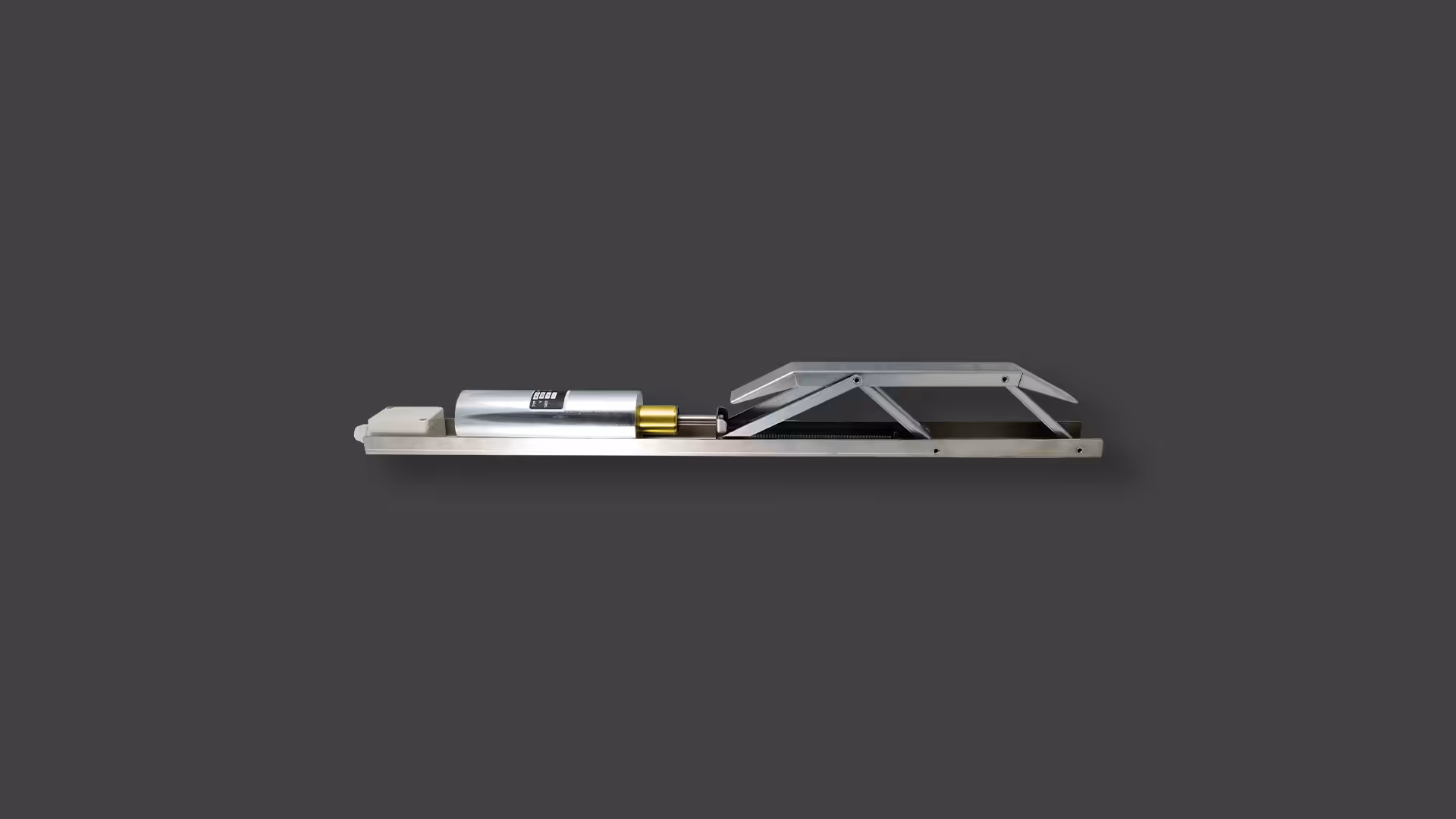

Retiring cam EMT15K-W

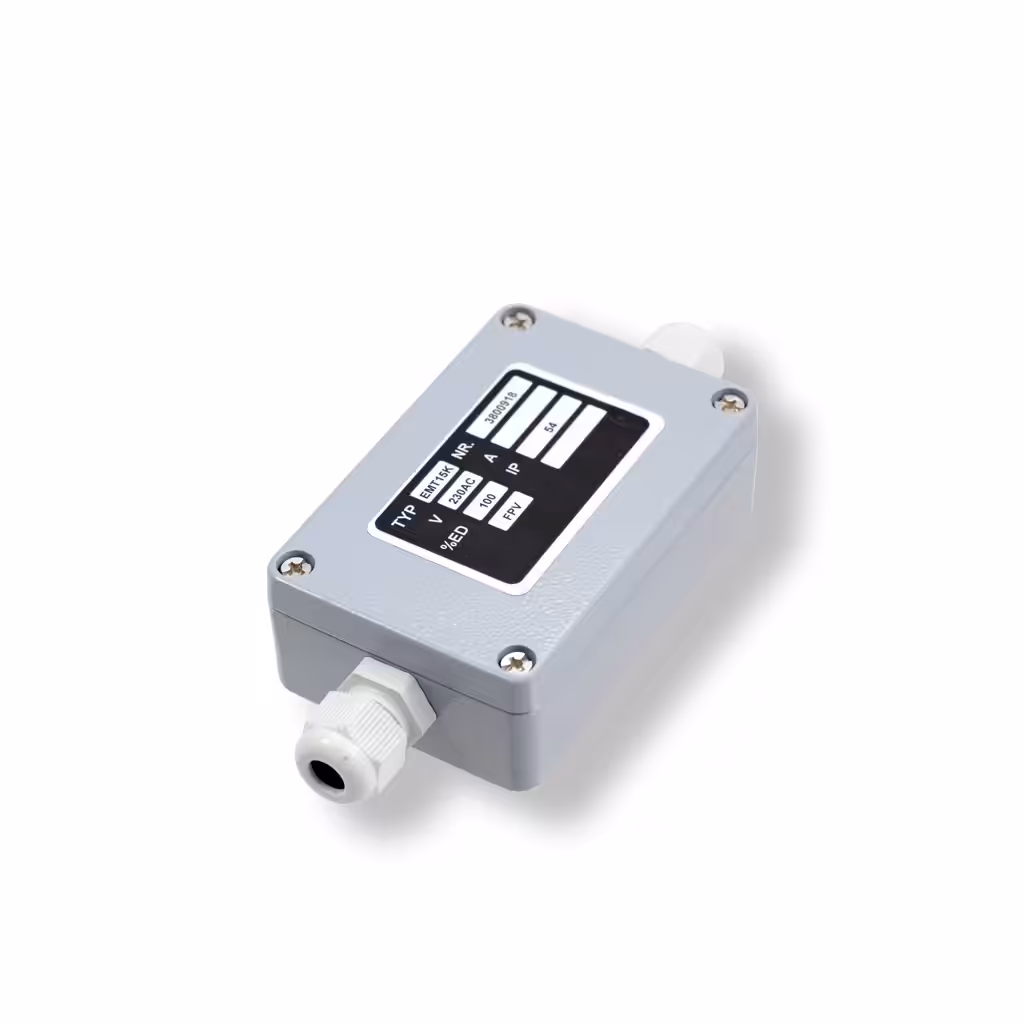

Terminal box EMT15K-W
Dimensions EMT15K-W
Retiring cam EMT15K-W
Features
- dust and waterprotected version, IP54
- all steel parts galvanized
- quiet due to high absorption at switch on and switch off
- automatic switching to reduced holding current
- robust and precise
- low construction height
Order information codes
Technical data
| duty cycle | 100% |
| stroke | 30 mm |
| actuation force | 40 N |
| pull-in / holding current | 0.85 A / 0.20 A |
| connection | screw terminal and earthing bolt M4, cable gland PG9 |
| level of protection | IP54 |
| ambient air temperature | 0 °C up to +40 °C (application at temperatures < 0 °C on request) |
| customary position | magnet keeper vertical in down direction |
| weight | 5.4 kg |
