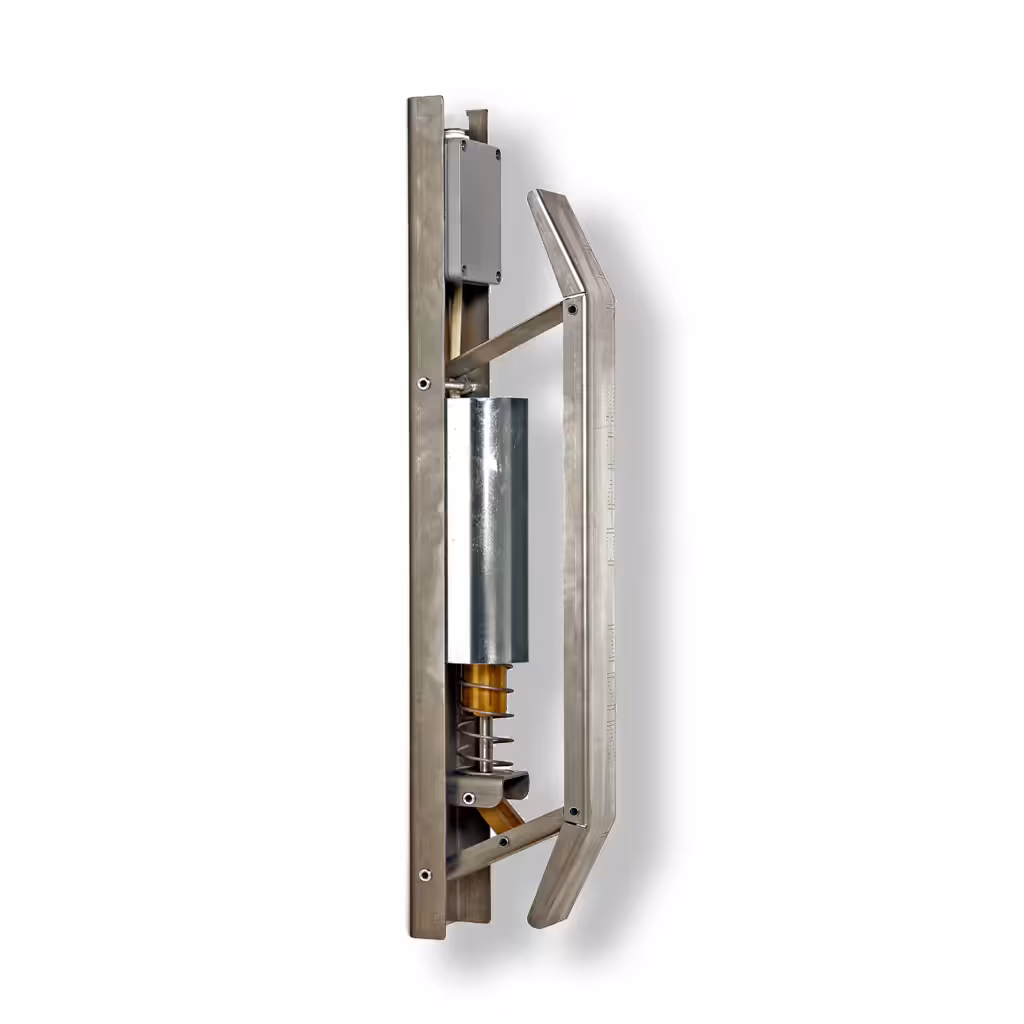

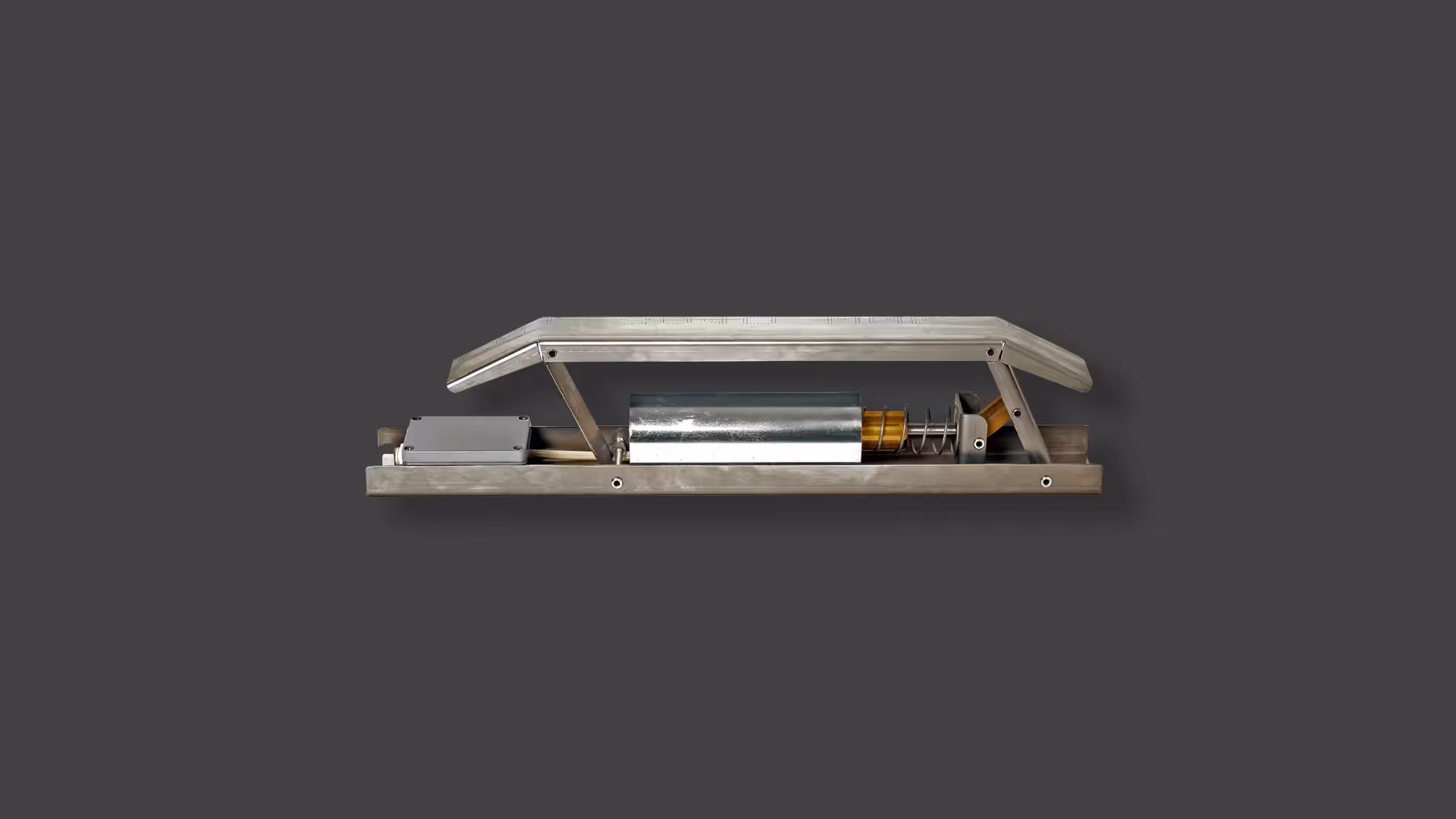

EMT17-IP65

with special dust and water protection

The electromagnetic retiring cam EM17-IP65 is suitable for installations for which a special dust- and water protection is required. Due to stainless steel parts it is better protected against corrosion, but has a slightly lower actuation force.

EMT17-IP65

EMT17-IP65

Features

  • high protection against water and dust, IP65
  • high corrosion protection, all steel parts made of stainless steel
  • quiet due to high absorption at switch on and switch off
  • automatic switching to reduced holding current
  • robust and precise

Order information codes

Technical data

duty cycle 100%
stroke 35 mm
actuation force 40 N
pull-in / holding current 1.0 A / 0.28 A
connection screw terminal and earthing bolt M4, cable gland Pg9
level of protection IP65
ambient air temperature 0 °C up to +40 °C (application at temperatures < 0 °C on request)
customary position magnet keeper vertical in down direction
weight 6 kg
