CL(F)MO
Flattest device with motorized actuation
The CL(F)MO has a low overall height and is unlocked with an integrated electric motor. The energy-saving motor has a high starting power and operates almost silently.
Door interlock CLFMO-L-X15(u)
Door interlock CLFMO-L-X15(u)

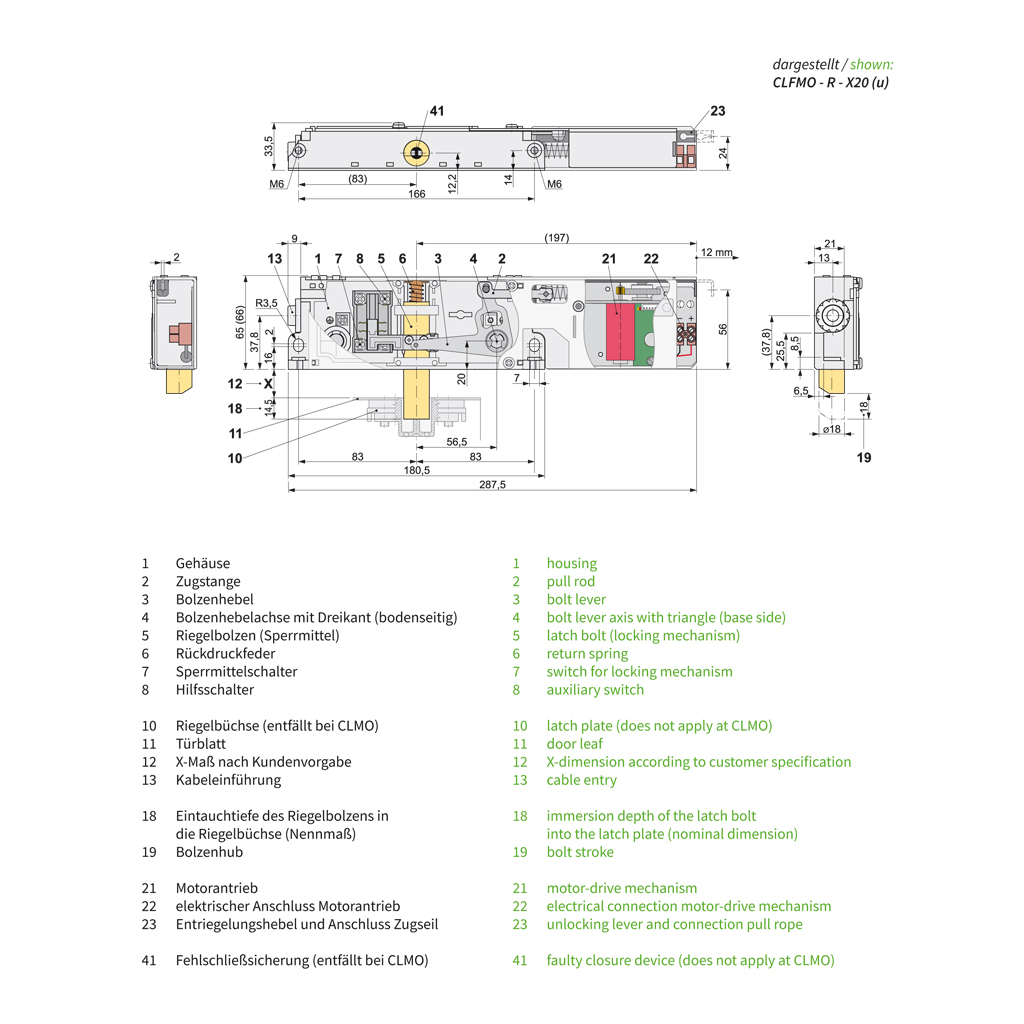

Dimensions CLFMO-R-X20(u)
Features
general:
- metal housing with high stability
- silent due to buffers in both directions
- maintenance-free by permanent lubrication with high quality lubricants
- constrained faulty closure at CLFMO for use in passenger lifts
- contacts with fine silver plating for a reliable function even at low voltages and currents
- extensive range of accessories
special features:
- integrated actuation by maintenance-free, low-noise three-phase motor and decelerated dropping of the bolt
- patent protected by Gbm DE 20 2015 105 331 and by patent EP 3 153 454 B1, validated in DE / FR / IT / ES
- low pull-in current (< 1 A at 24 V)
- automatic switching over to reduced holding current (0.2 A), energy saving
- safe unlocking by position monitoring even if the bolt is temporarily blocked (incorrect operation)
- status display by coloured LED’s
- symmetrical fixing dimensions and centrically arranged latch bolt
- low construction height
- reduced bolt stroke
- integrated auxiliary switch (always existing)
- optional: monitoring of the base side emergency release with positive opening safety switch (EN 81-21)
- same position of the emergency release triangle also indirect with monitoring
- lever for self-liberation (manual operation) from the pit and preparation for external cable pull always existing
Order information codes
Technical data
| norms | EN 81-20, EN 81-50, EN 81-21, EN 60947-5-1 |
| certificates | type approval certificate: EU-DL 811/2 (CLFMO) and EU-DL 812/2 (CLMO) UK-DL 811/2 (CLFMO) and UK-DL 812/2 (CLMO) |
| switching capacity: switch for locking mechanism monitoring switch auxiliary switch |
Ui = 250 V Ith = 10 A Uimp = 4 kV AC-15: Ue = 230 V Ie = 2 A DC-13: Ue = 200 V Ie = 1 A AC-15: Ue = 230 V Ie = 2 A DC-13: Ue = 200 V Ie = 2 A AC-15: Ue = 230 V Ie = 2 A DC-13: Ue = 200 V Ie = 1 A |
| short-circuit capacity | T 10 A F 16 A |
| contact material | fine silver |
| motor drive of the latch bolt: operating voltage pull-in current / time (typical) holding current |
24 V DC (-10 % / +25 %) regulated 0.85 A / < 0.5 s 0.2 A |
| connection | by screw terminal max. 1.5 mm² cable entry M20x1.5 with clamping gland |
| level of protection | IP40 |
| ambient air temperature | -10 °C up to +45 °C |
| weight | 950 g to 1100 g (according to version) |
