RKMO

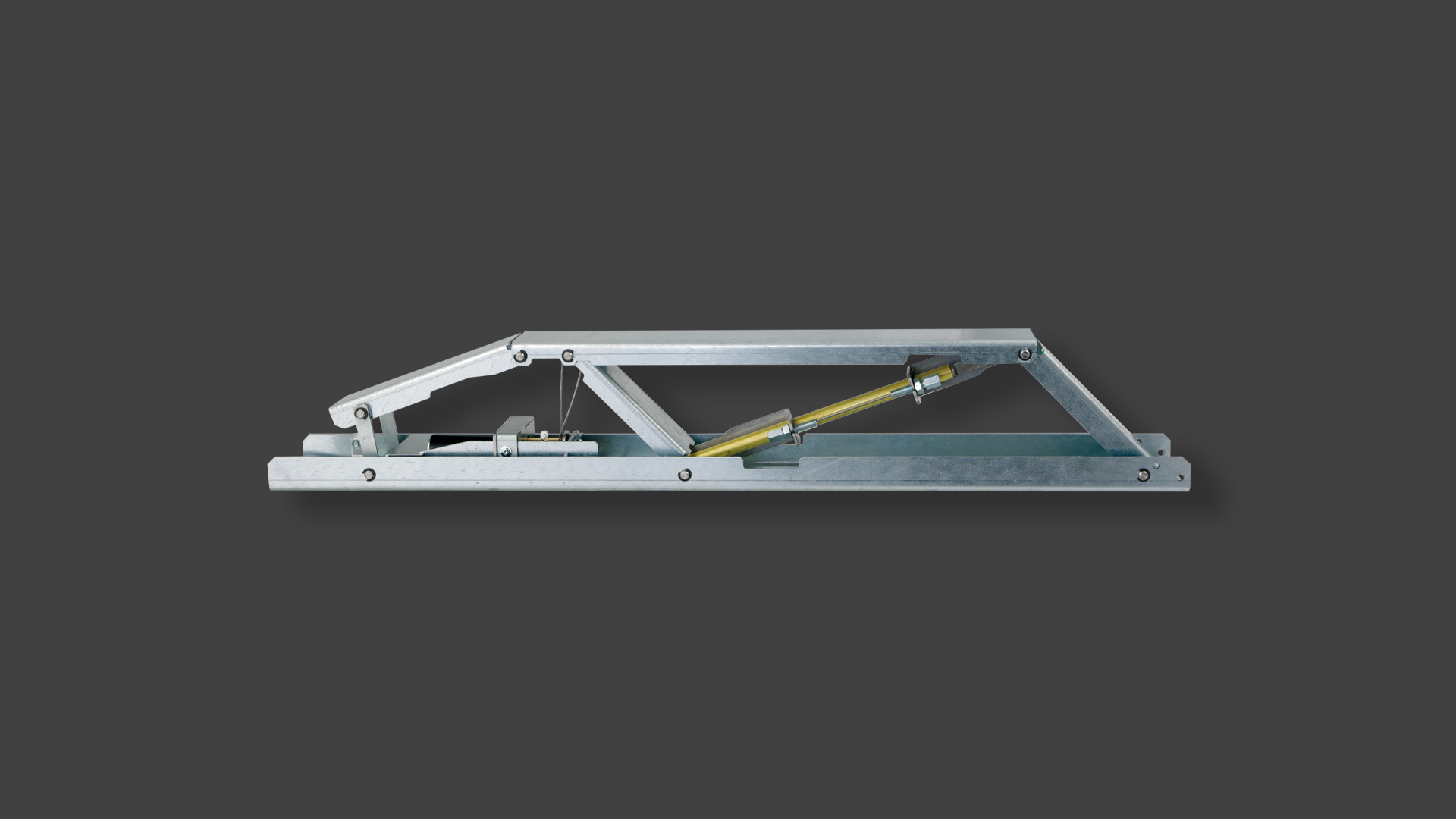

Retiring cam with motorized actuation RKMO

The retiring cam RKMO operates motor driven and convinces by a barely perceptible noise when unlocking and locking.

It is available as 100-250 V DC / AC wide-range voltage input and as 48 V AC / DC, 24 V DC and 24 V AC version. This motorized retiring cam is also characterised by a low power consumption, high actuation force and a large adjustable stroke.

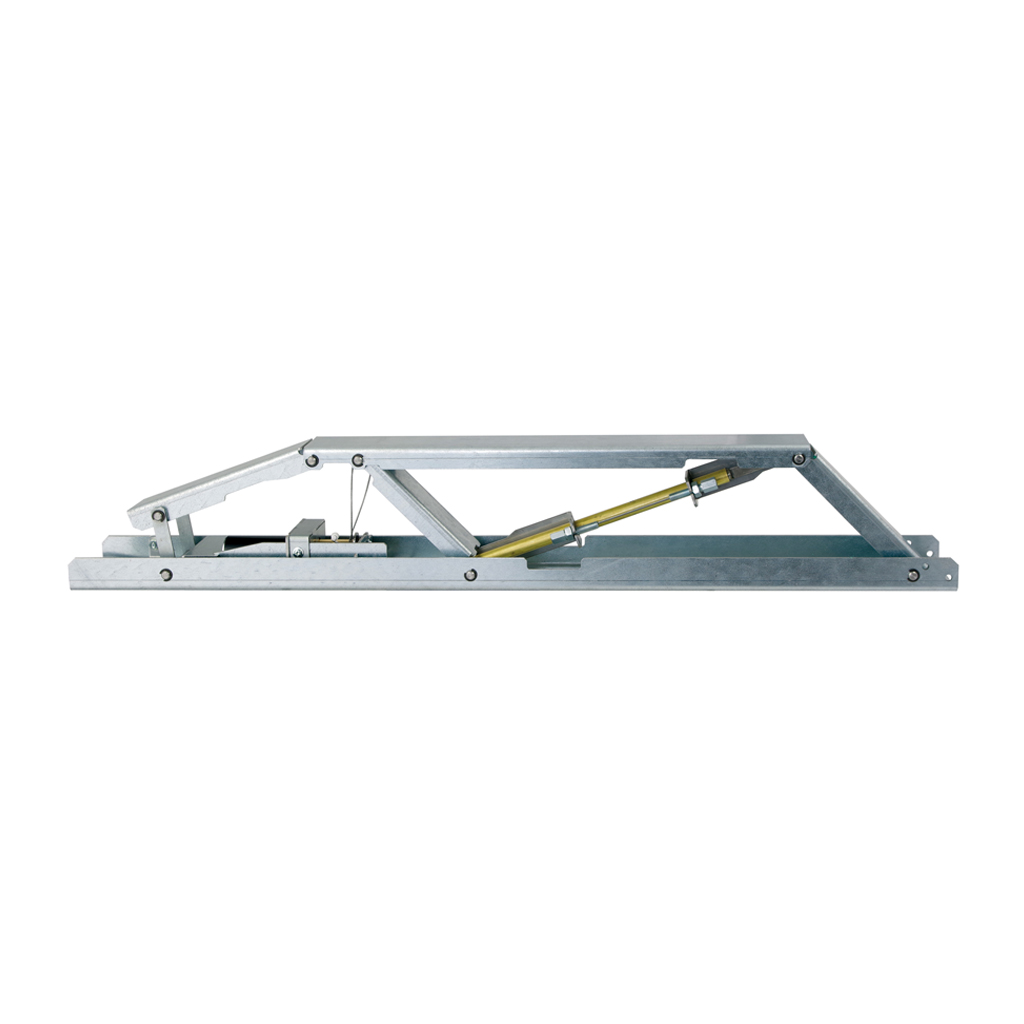

RKMO 24 V, currentless

Nr. 2, RKMO 24 V, unbestromt

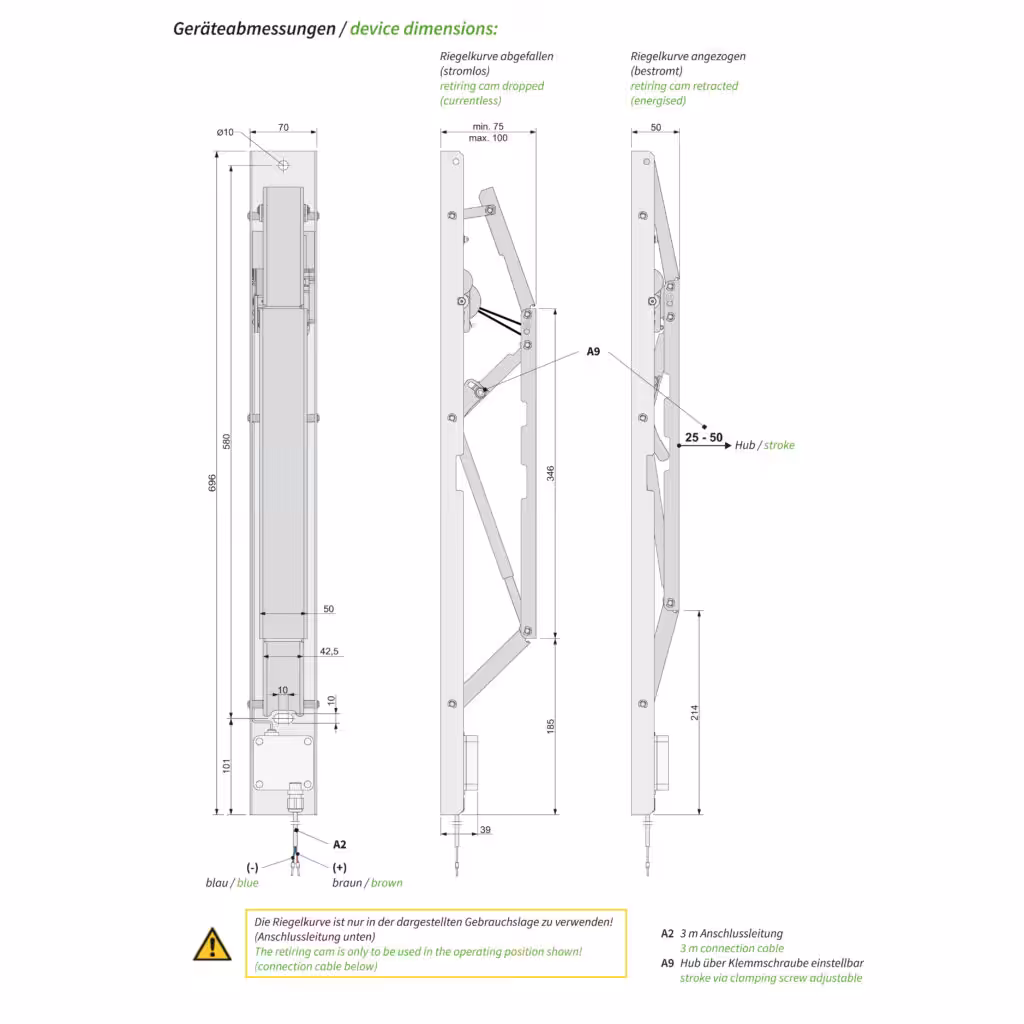

kro_mot_rkmo_dim

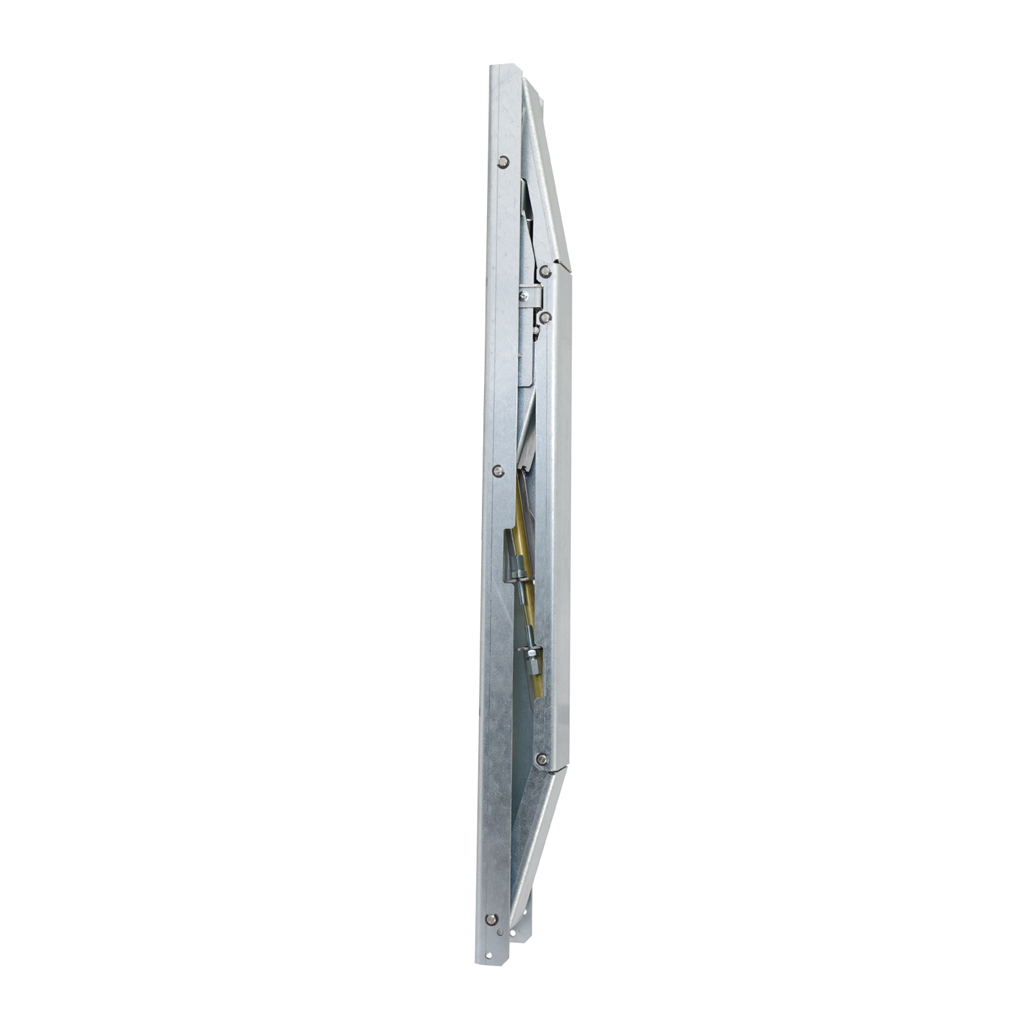

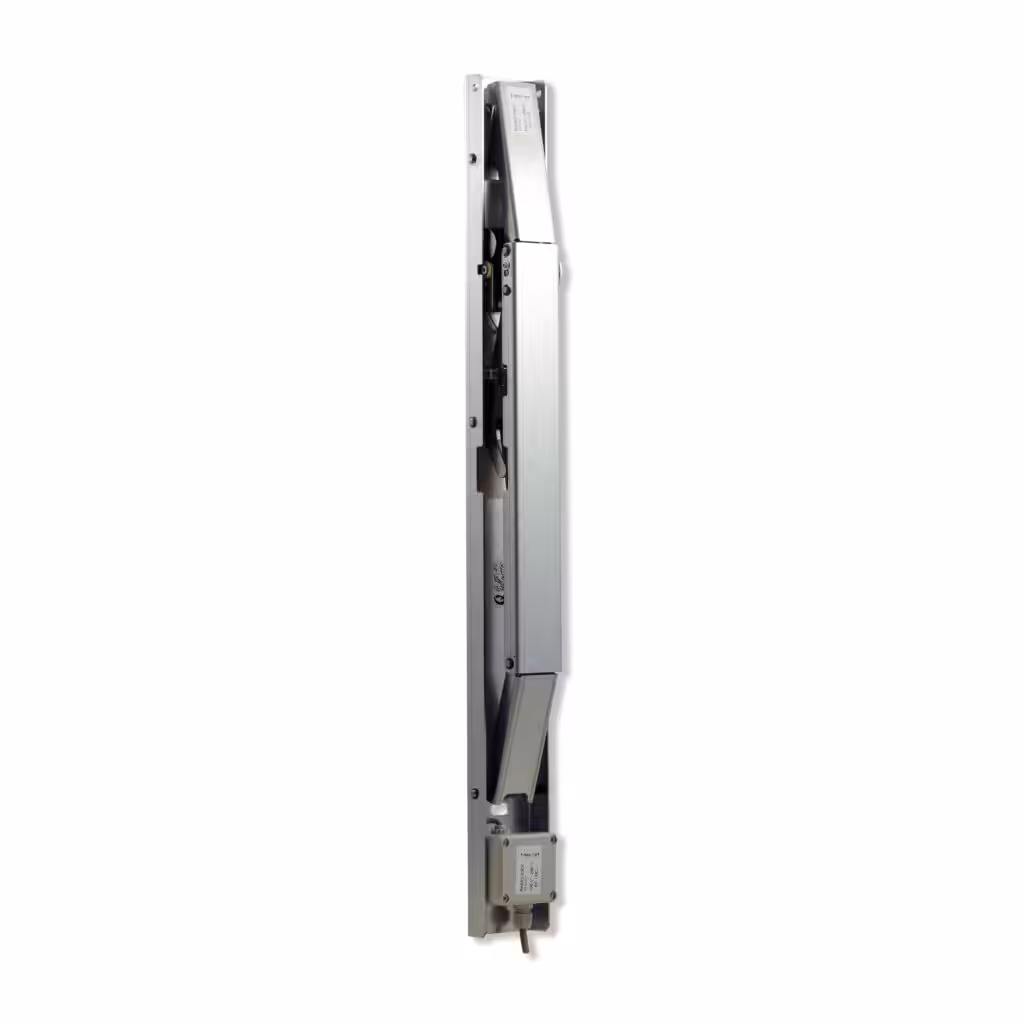

RKMO 24 V, energised

Nr. 4, RKMO 24 V, bestromt

RKMO 24 V, currentless

Nr. 2, RKMO 24 V, unbestromt

kro_mot_rkmo_dim

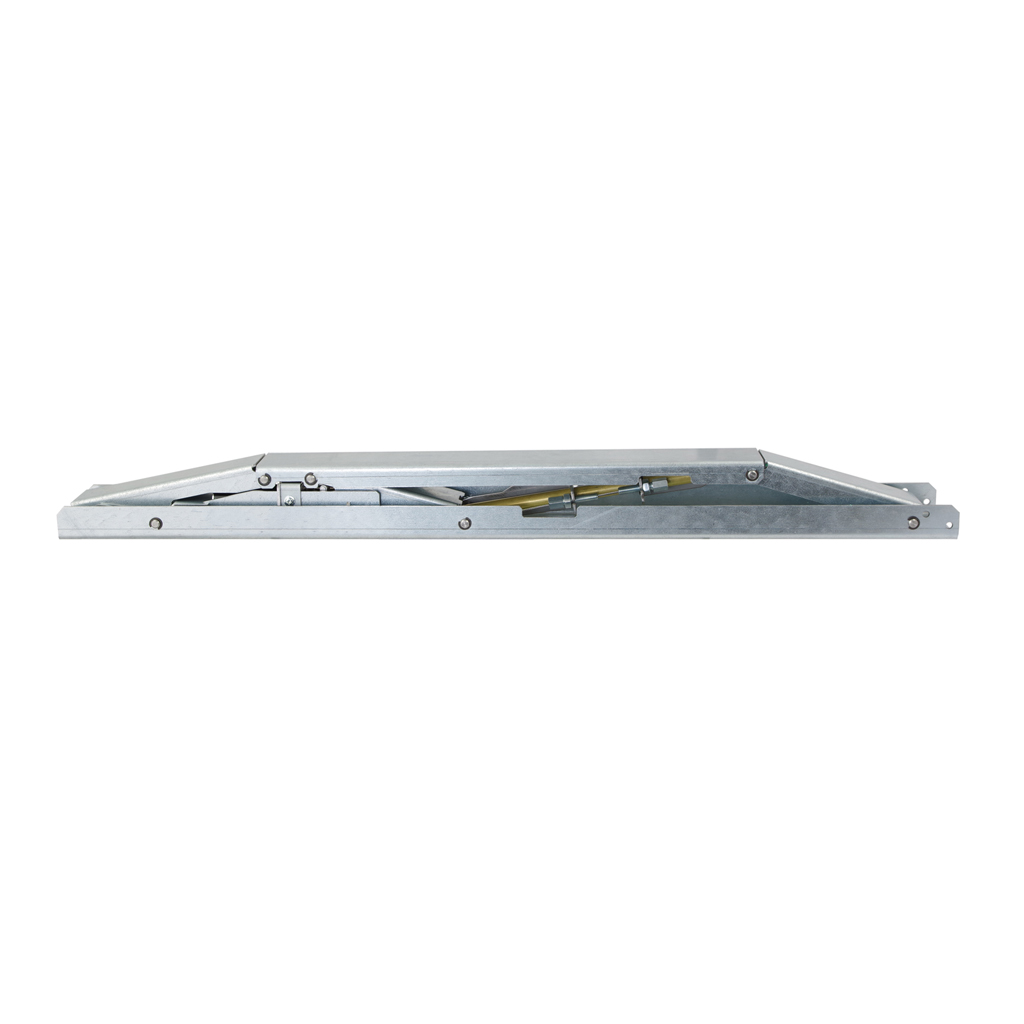

RKMO 24 V, energised

Nr. 4, RKMO 24 V, bestromt

Features:

  • drive with maintenance-free three-phase motor
  • high actuation force up to 65 N
  • especially low total height of only 50 mm
  • large stroke up to 50 mm, adjustable
  • energy-saving due to low power requirement of only 0.22 A holding current at 24 V
  • duty cycle of any length (100 % duty cycle)
  • hardly perceptible unlocking and locking of the landing doors due to low noise emission
  • all steel parts galvanized

Order information codes:

Technical data:

duty cycle 100%
total height energised / retracted 50 mm
currentless / dropped 75 – 100 mm adjustable
stroke 25 – 50 mm adjustable
actuation force 65 N
ambient air temperature -10 °C up to +45 °C
customary position vertical, motor drive above
RKMO – 230V:
nominal voltage
input current
connection
level of protection
weight
100 V – 250 V AC or DC (rectified alternating voltage)
max. 0.4 A at 230 V AC
3 m connection cable, 2 x 1 mm²
IP20, insulated
2.9 kg
RKMO – 48V:
nominal voltage
admissible voltage range
maximum peak voltage
pull-in / holding current
connection
level of protection
weight
48 V AC or DC
30 V – 55 V AC or DC
80 V
0.7 A / 0.15 A
3 m connection cable, 2 x 0.25 mm²
IP40
2.9 kg
RKMO – 24DC:
nominal voltage
admissible voltage range
maximum peak voltage
pull-in / holding current
connection
level of protection
weight
24 V DC stabilised / regulated
21 V up to 30 V
36 V
1 A / 0.25 A
2 m connection cable, 2 x 0.25 mm²
IP00 (safety extra-low voltage)
2.7 kg
RKMO – 24AC:
nominal voltage
admissible voltage range
maximum peak voltage
pull-in / holding current
connection
level of protection
weight
24 V AC
22 V – 30 V AC or DC (pulsating or AC rectified)
43 V
1 A / 0.22 A
3 m connection cable, 2 x 1 mm²
IP40 (safety extra-low voltage)
2.9 kg
