NE-02-IP67

Triangular actuation for unlocking by bowden cable, with monitoring, IP67

The triangular emergency release units type NE are intended for the realization of an emergency release in an easily accessible position. They actuate the rope or bowden cables attached to the lock. They are also suitable for retrofitting existing installations to increase safety to the state-of-the art.

At the version NE-02-IP67 the triangle is monitored by a safety switch in level of protection IP65 to detect the emergency release at shafts with insufficient protective room.

NE-02-IP67, left version

101_tv_zub_ne-02-ip67_a1-7

NE-02-IP67, right version

102_tv_zub_ne-02-ip67_a2-7

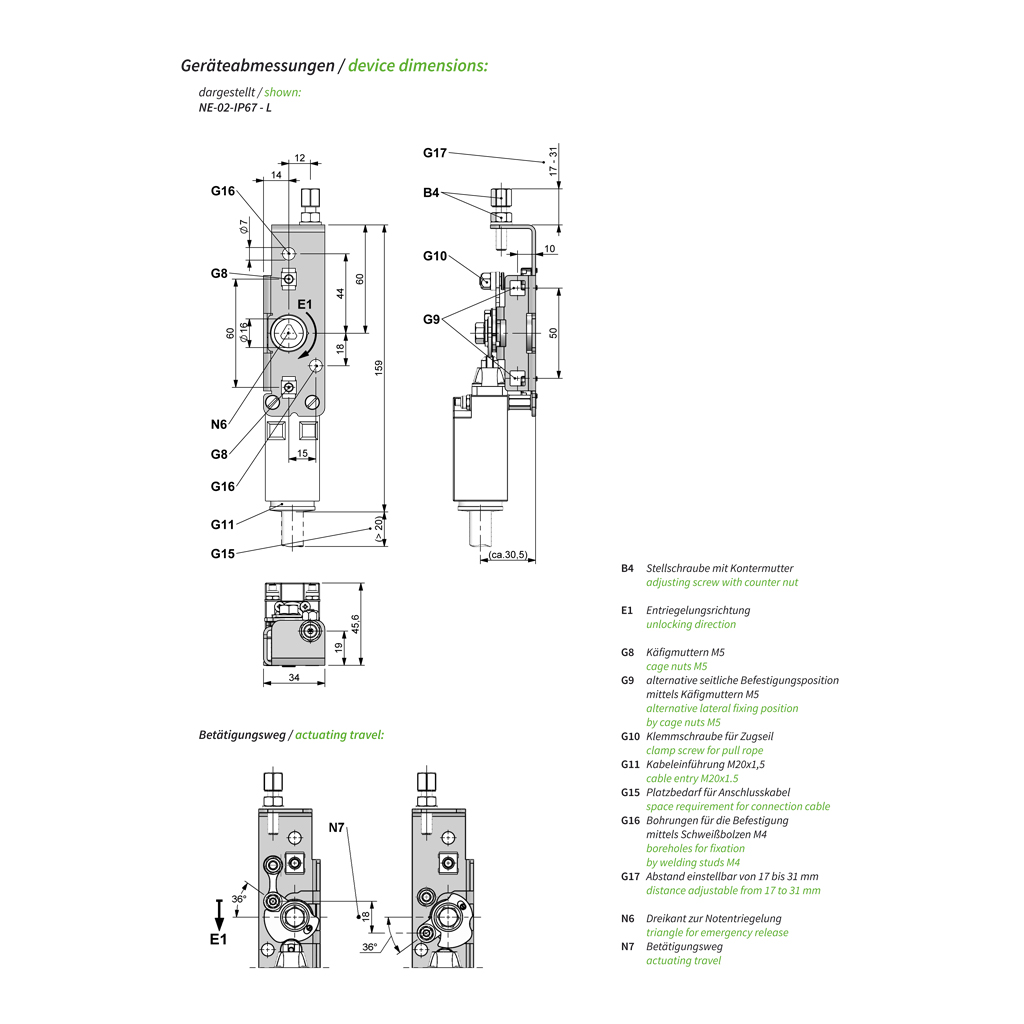

Dimensions NE-02-IP67

103_tv_zub_ne-02-ip67_dim-7

Basic principle

104_tv_zub_ne-02-ip67_prinzip-7

Features:

  • triangular actuation for an emergency release of lift doors by bowden cable, preferably for door interlocks with emergency release .14 or with bowden cable fixing kit KIT.14
  • allows an unlocking from the floor or from the pit ladder, within the required limits according to EN 81-20
  • version with monitoring switch in level of protection IP67
  • adjusting screw for adjustment/readjustment of the bowden cable
  • robust metal design of the mechanics
  • mounting options by cage nuts or boreholes for welding studs
  • version left (standard) or right available

Order information codes:

Technical data:

wire rope – diameter max. 1.5 mm
switching capacity Ui = 500 V lth = 10 A Uimp = 6 kV
AC-15: Ue = 240 V Ie = 4 A DC-13: Ue = 24 V Ie = 1.0 A
connection by screw terminal max. 2.5 mm², cable entry M20x1.5
actuating travel 18 mm
level of protection IP65, IP67
weight 212 g
