The latch plate is necessary as the counter part for the latch bolt of a door interlock and is installed in the door leaf. The latch plate serves to release the faulty closure device so that the latch bolt can only extend into the locking position at closed door. For subsequent installation a special mounting tool is available.

Especially for door interlocks used in harsh industrial environments, we have developed the height-adjustable latch plate BL-V with a large bolt clearance. Thus, inaccuracies due to thermal expansion or distortion of the door can better be compensated.

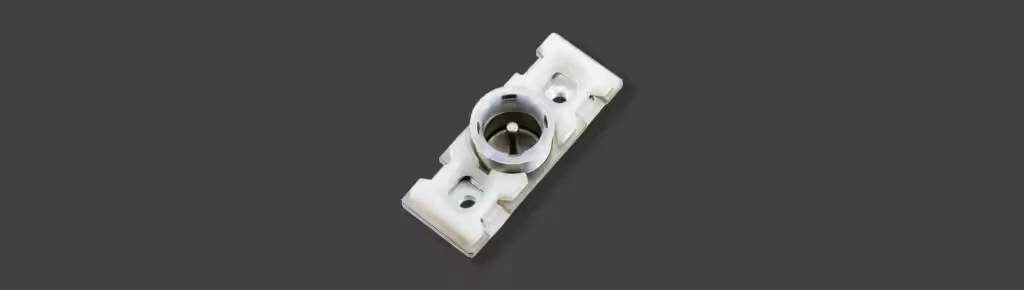

The latch plate BS-V with height adjustment allows the adaptation to different material thicknesses of door leaves or a readjustment when the door is lowered. For subsequent installation a special mounting tool is available.

The version BS-SEIT is designed for lateral flanging to the door that is to be locked and is therefore ideally suited for modernisation solutions. The latch plate core is adjustable in height which allows a flexible adaptation to the situations on site.
