UTRFID

with acknowledgement

The UTRFID module enables convenient and secure control of lift functions. Stored transponders (TAGs) can be used to activate, lock or release call and operating elements – flexibly and reliably. Up to 250 individual transponders can be managed. Visual and acoustic feedback ensures clear user guidance.

Thanks to its galvanically isolated relay output and adjustable reference potential, the UTRFID is extremely versatile. The switching function, pulse duration and signal parameters can be individually adjusted. Parameterization and transponder management are possible via optional PC software. Programming and deletion transponders are also available for maximum flexibility.

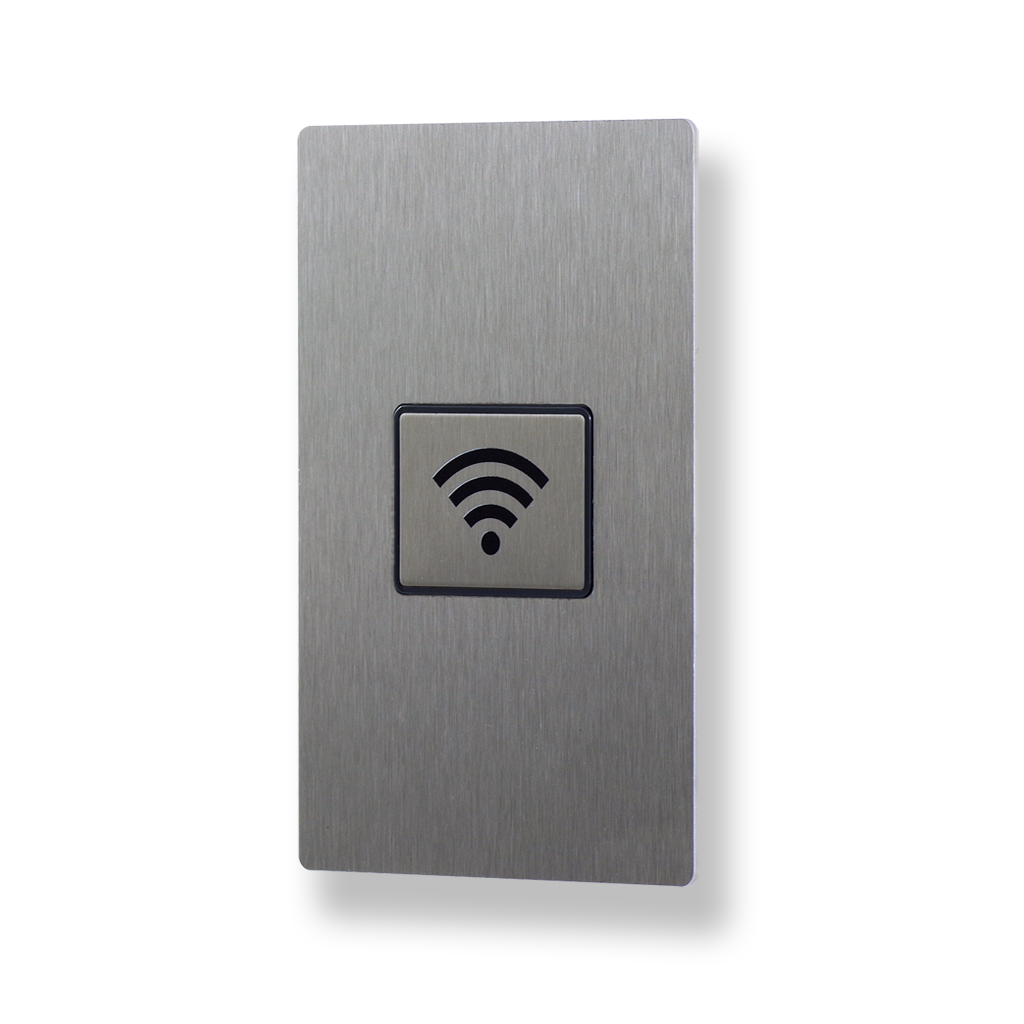

UTRFID-RE, installed

40-20-22-Slider-utrfid-01

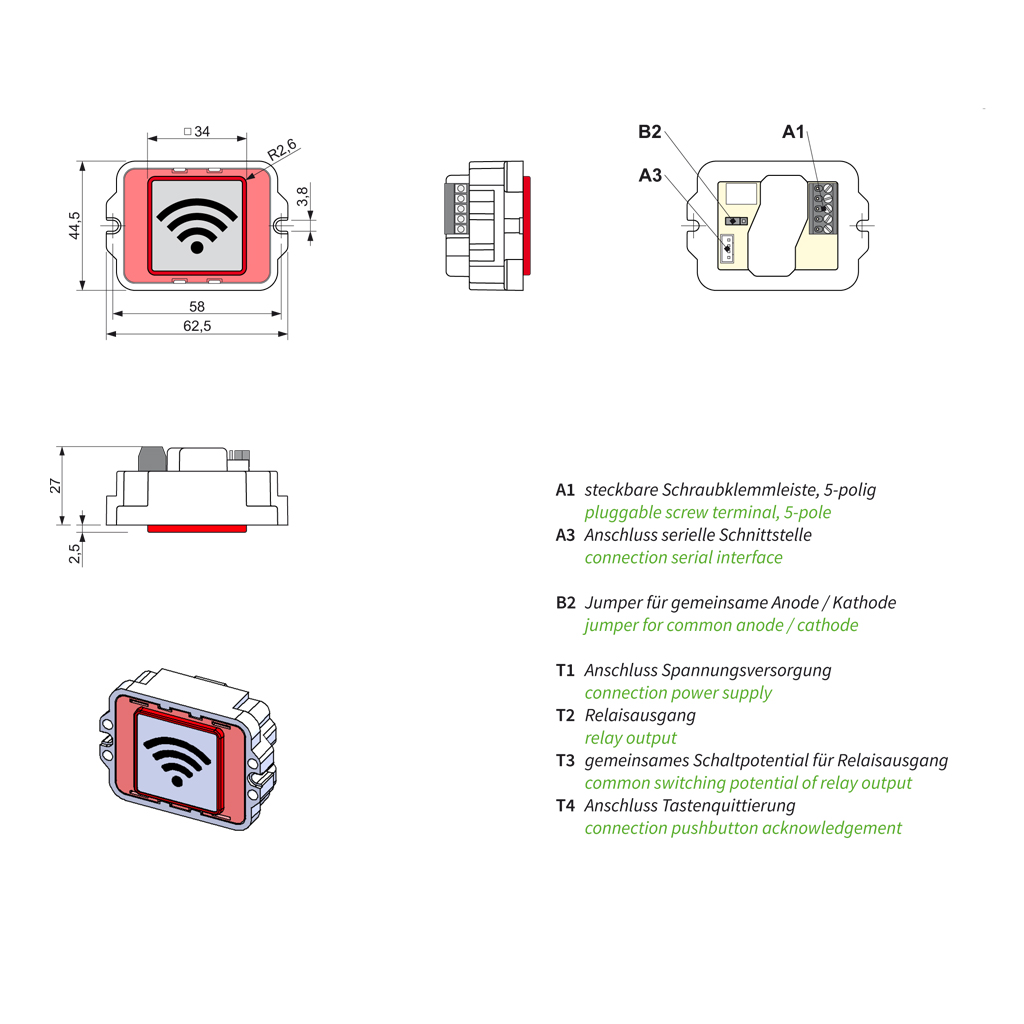

device dimensions

40-20-22-Slider-utrfid-dim

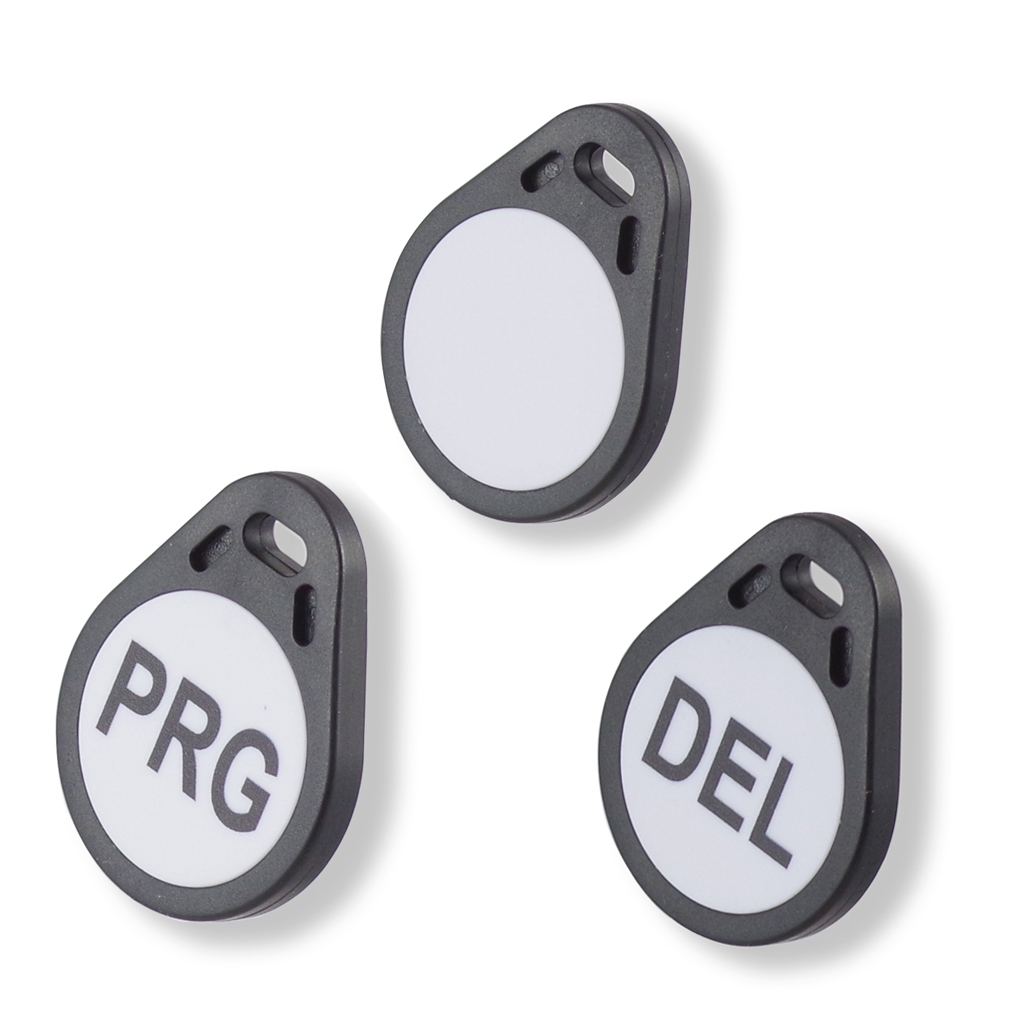

transponder set, three-part

40-20-22-Slider-utrfid-03

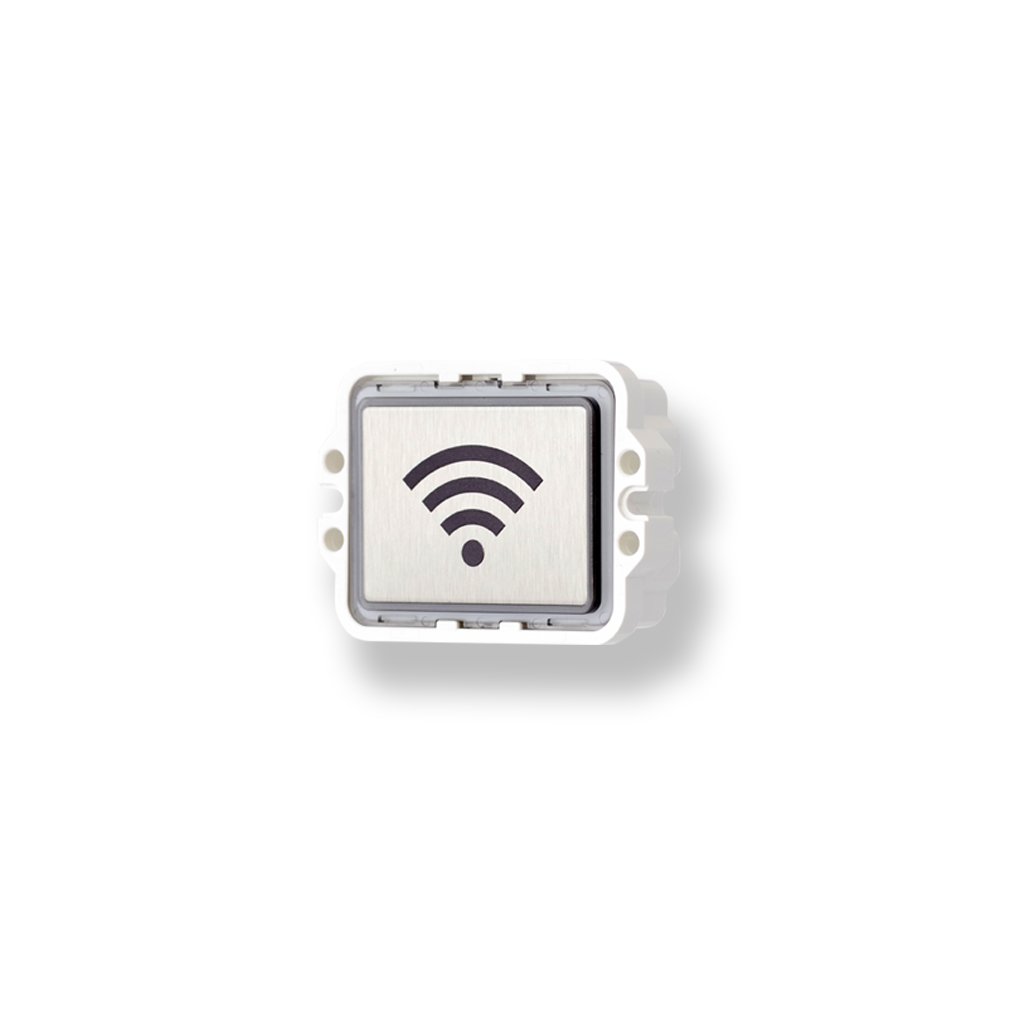

UTRFID-RE

40-20-22-Slider-utrfid-02

UTRFID-RE, installed

40-20-22-Slider-utrfid-01

device dimensions

40-20-22-Slider-utrfid-dim

transponder set, three-part

40-20-22-Slider-utrfid-03

UTRFID-RE

40-20-22-Slider-utrfid-02

Features:

  • for activation, blocking or release of call functions or operating elements of a lift by stored transponders (TAGs)
  • up to 250 individual transponders programmable
  • three different fronts with halo suitable for the pushbutton system UT
  • integrated optical and acoustic acknowledgement
  • reference potential adjustable via jumper (common anode / cathode)
  • galvanically isolated relay output
  • switching function mono- or bistable (switching impulse or on / off switch)
  • switching behaviour, impulse duration and pitch can be parameterised
  • parameterization and transponder administration by optional PC software possible
  • optional: programming and delete transponder available

Order information codes:

Technical data:

nominal voltage 24 V DC
power supply 19 – 30 V DC
current consumption 25 mA in idle mode
max. 75 mA in operation (at nominal voltage)
switching voltage max. 60 V
switching current max. 1 A
storage capacity max. 250 different transponders
connection pluggable screw terminal block 5-pole, max. 1 mm²
level of protection front side IP40, IP00 rear side
ambient air temperature -10 °C up to +50 °C
