TFT-5.0

display 5.0“

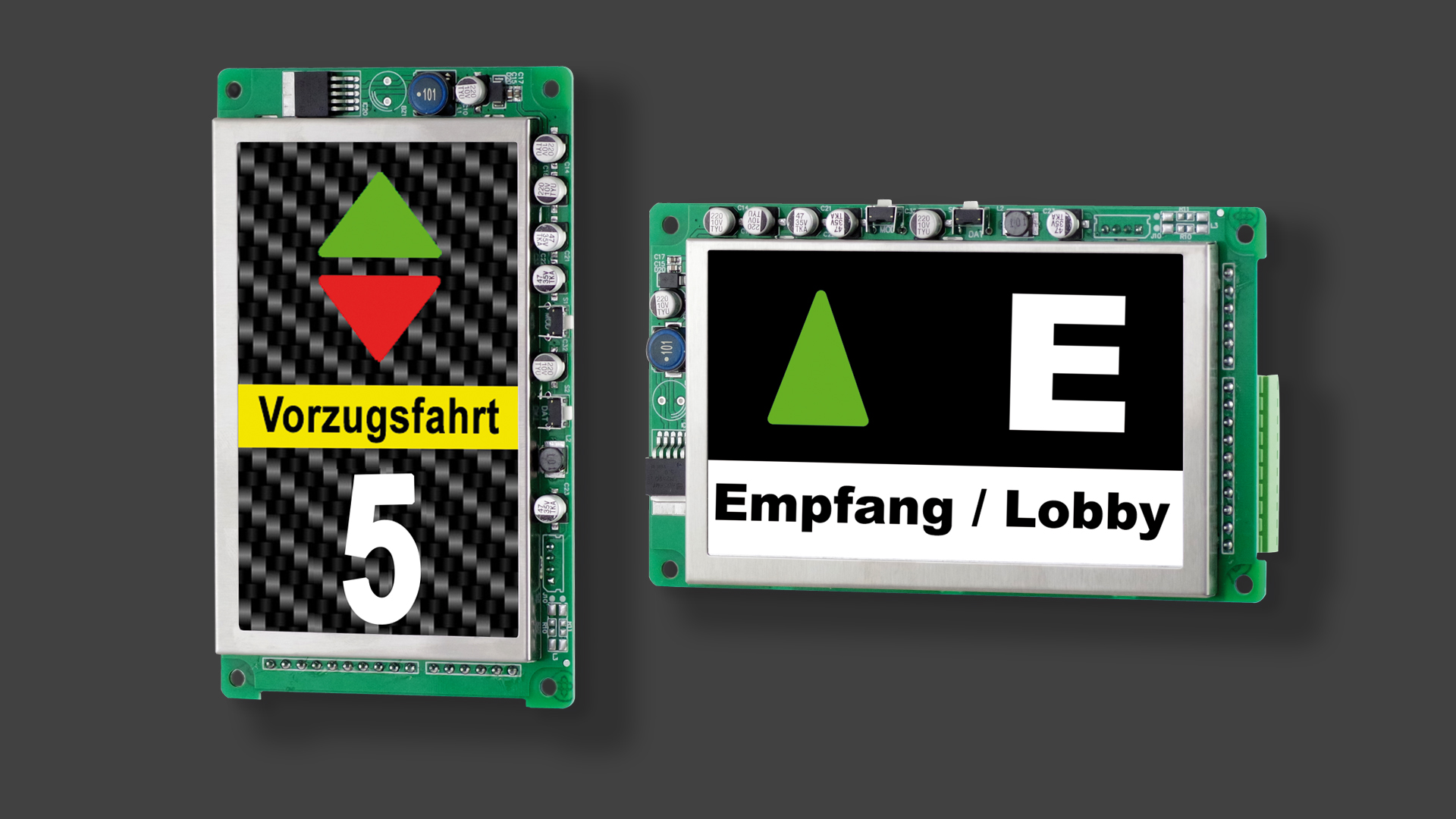

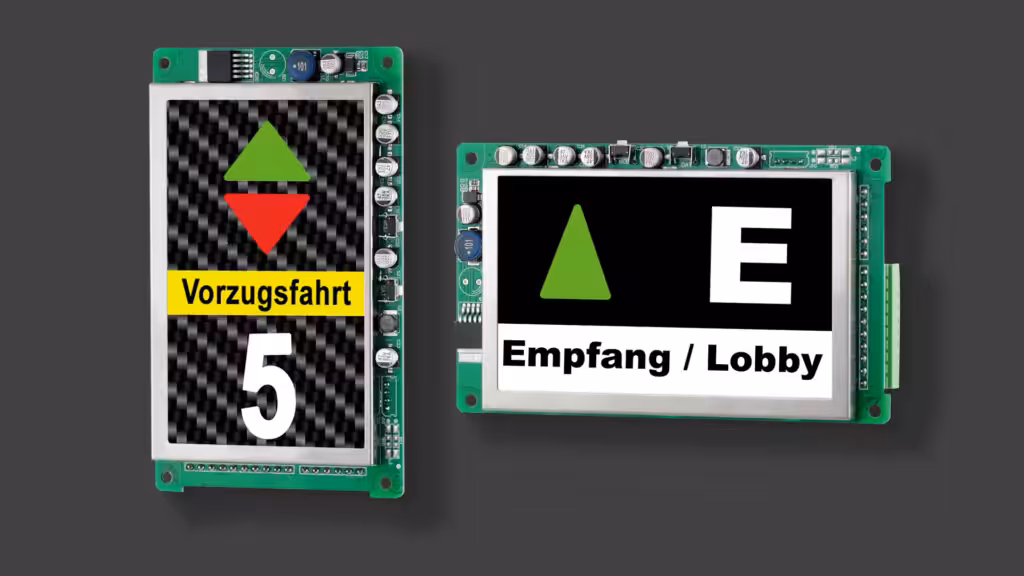

The 5.0-inch display is specially designed for car operating panels with special functions. It supports the display of up to 64 floors and up to 4 information texts in full or partial format, expandable to up to 7 texts with the TFT-BM7-SET bus module. The display is supplemented by a static direction display, coloured backgrounds, individual floor images, photos or graphics as a background and a slide show function.

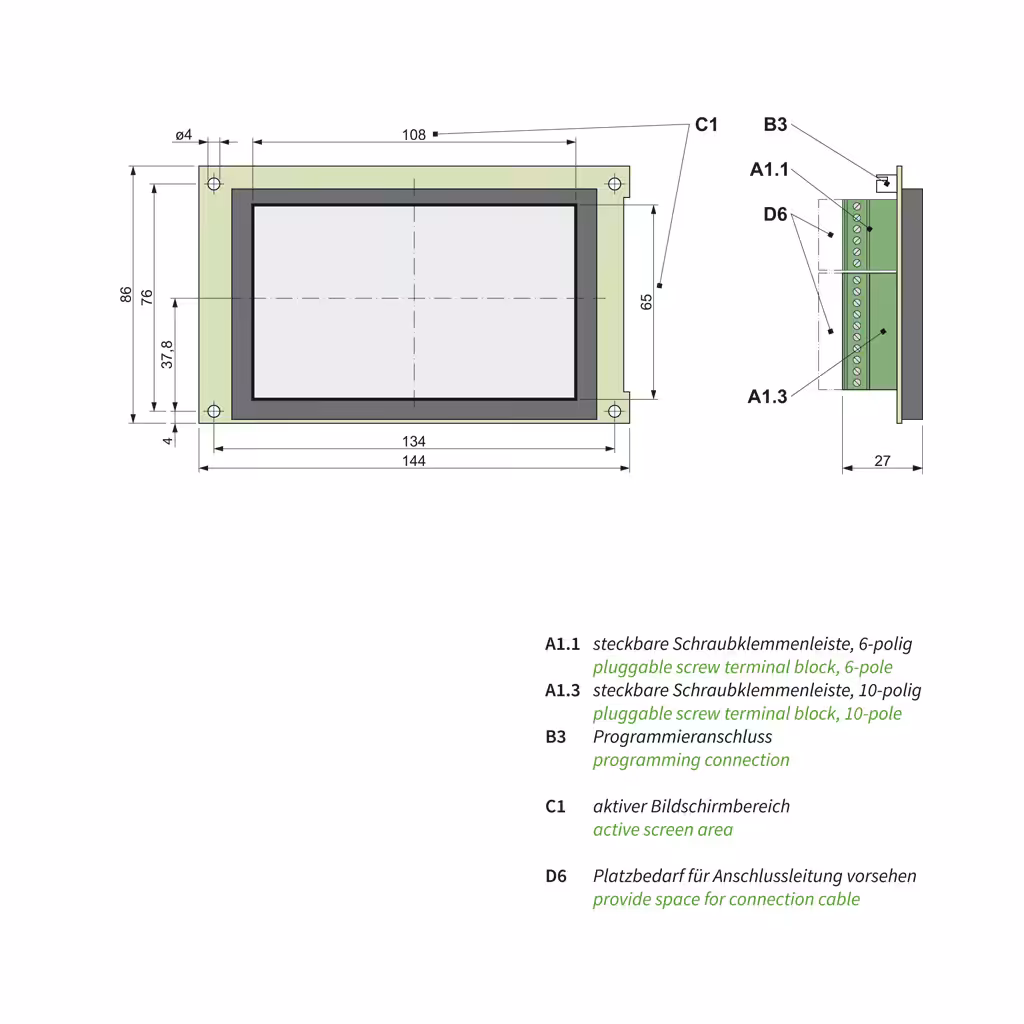

device dimensions

40-20-22-Slider-TFT50-Abmessungen

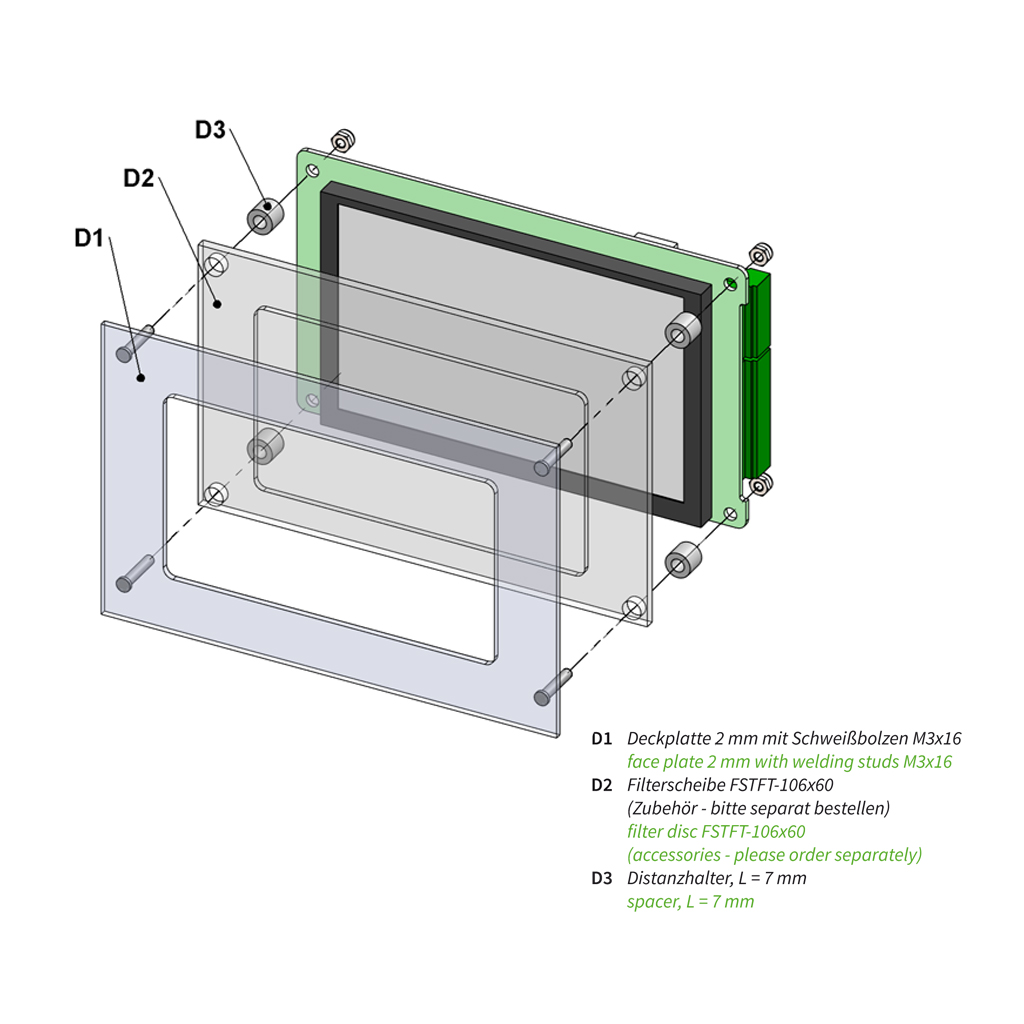

installation example

40-20-22-Slider-TFT50-Einbau

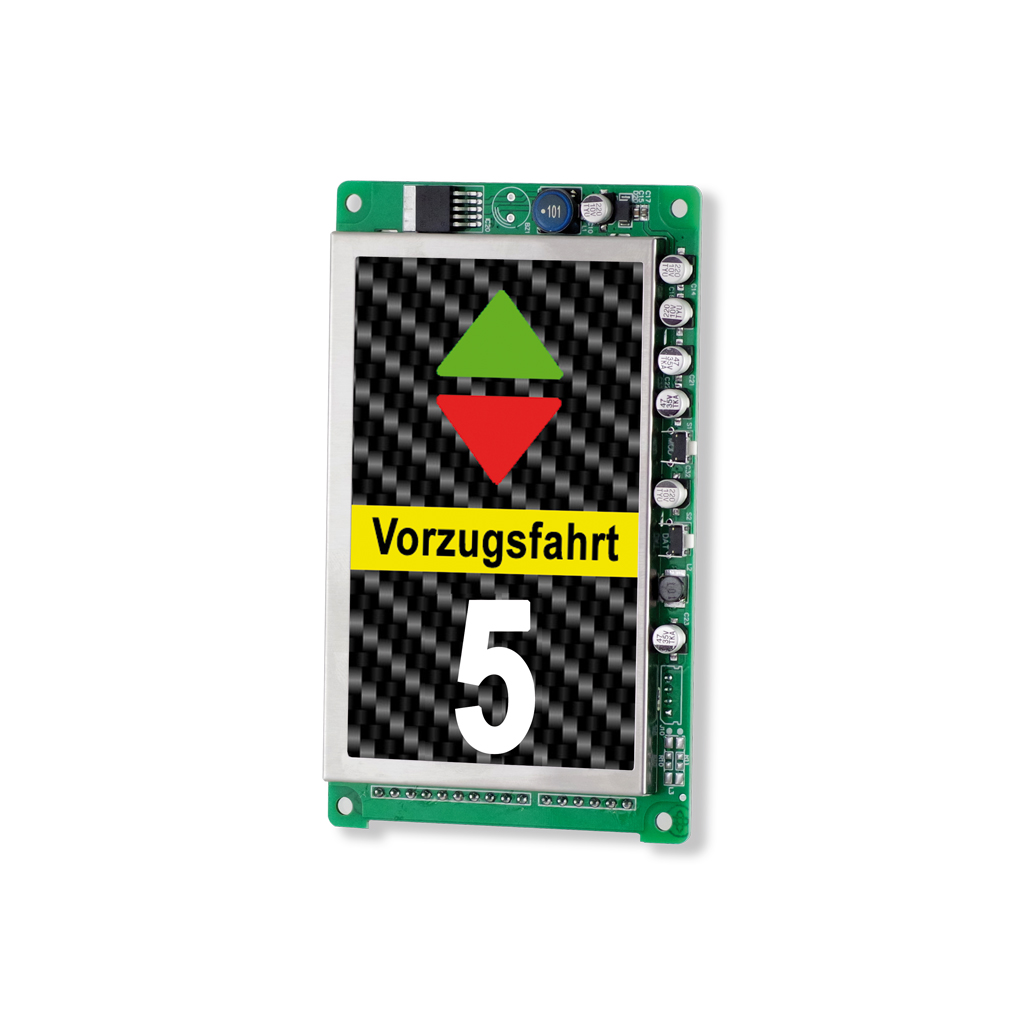

TFT-5.0, portrait format

40-20-22-Slider-TFT50-H

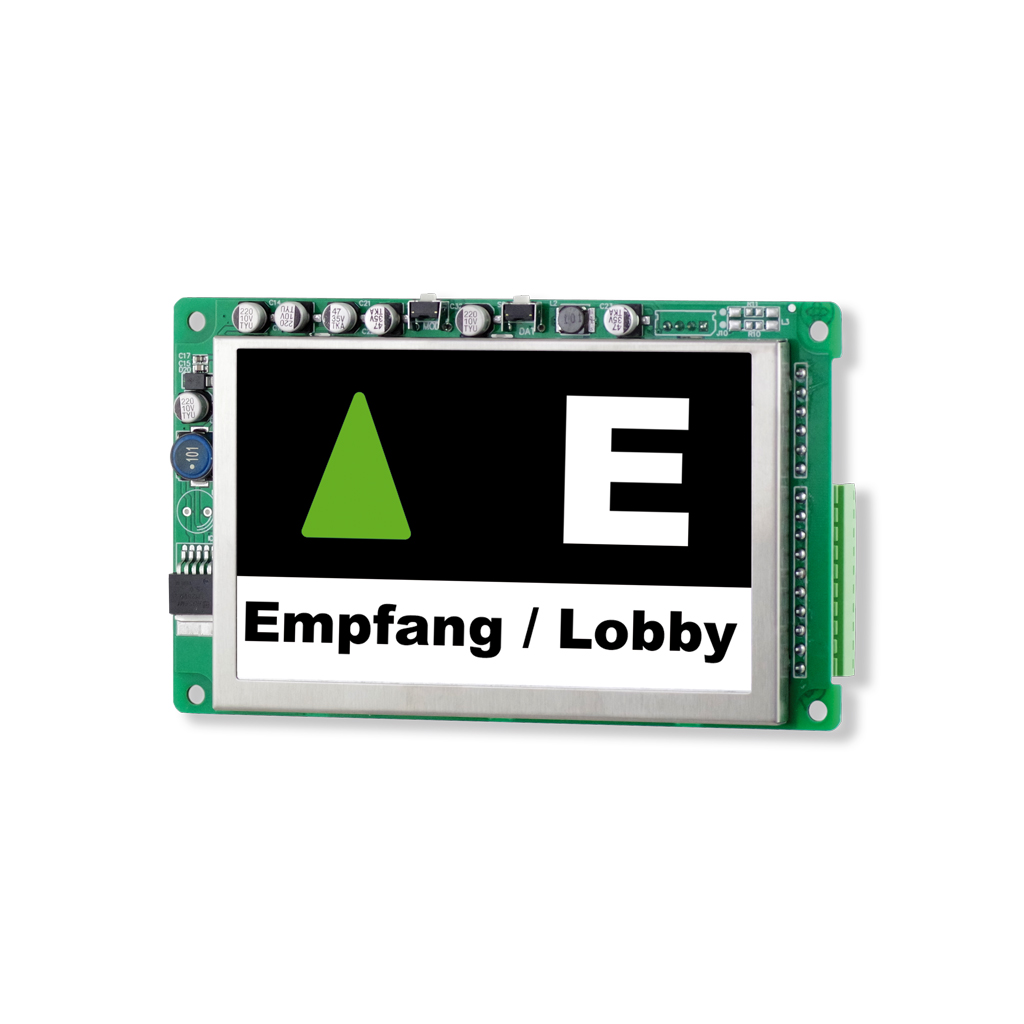

TFT-5.0, landscape format

40-20-22-Slider-TFT50-Q

device dimensions

40-20-22-Slider-TFT50-Abmessungen

installation example

40-20-22-Slider-TFT50-Einbau

TFT-5.0, portrait format

40-20-22-Slider-TFT50-H

TFT-5.0, landscape format

40-20-22-Slider-TFT50-Q

Features:

  • application:
    • display for car operating panels with special functions
  • functions:
    • display option up to 64 floors
    • 4 notices in full or partial format, in combination with TFT-BM7-SET up to 7 notices possible
    • direction indicator, static
  • additional functions:
    • background coloured
    • photo or graphic as background image
    • indivicual floor pictures
    • slide show
    • settings menu for paramterisation on site
  • control:
    • gray code, binary code, 1 out of n, serial via bus module TFT-BM2-SET or TFT-BM7-SET
    • coding can be changed on site via settings menu
    • reference potential adjustable via jumper (common anode / cathode)
  • programming:
    • order-related standard programming or special programming after consultation
    • customer programming via USB adapter TFT-PGM and free programming software possible
    • programming can be changed on site via a microSD card

Order information codes:

Technical data:

electrical data:
power supply 15 – 27 V DC
current consumption approx. 100 mA at 24 V DC
properties:
screen diagonal 127 mm
resolution (transverse) 800 x 480 pixel
active screen area (transverse) 108 x 65 mm
aspect ratio 15:9
other:
interfaces serial, for programming adapter TFT-PGM
connection pluggable screw terminal block 6- and 10-pole, max. 1.5 mm2
level of protection IP00
ambient air temperature -10 °C up to +60 °C
installation position transverse or upright
