for the machine room

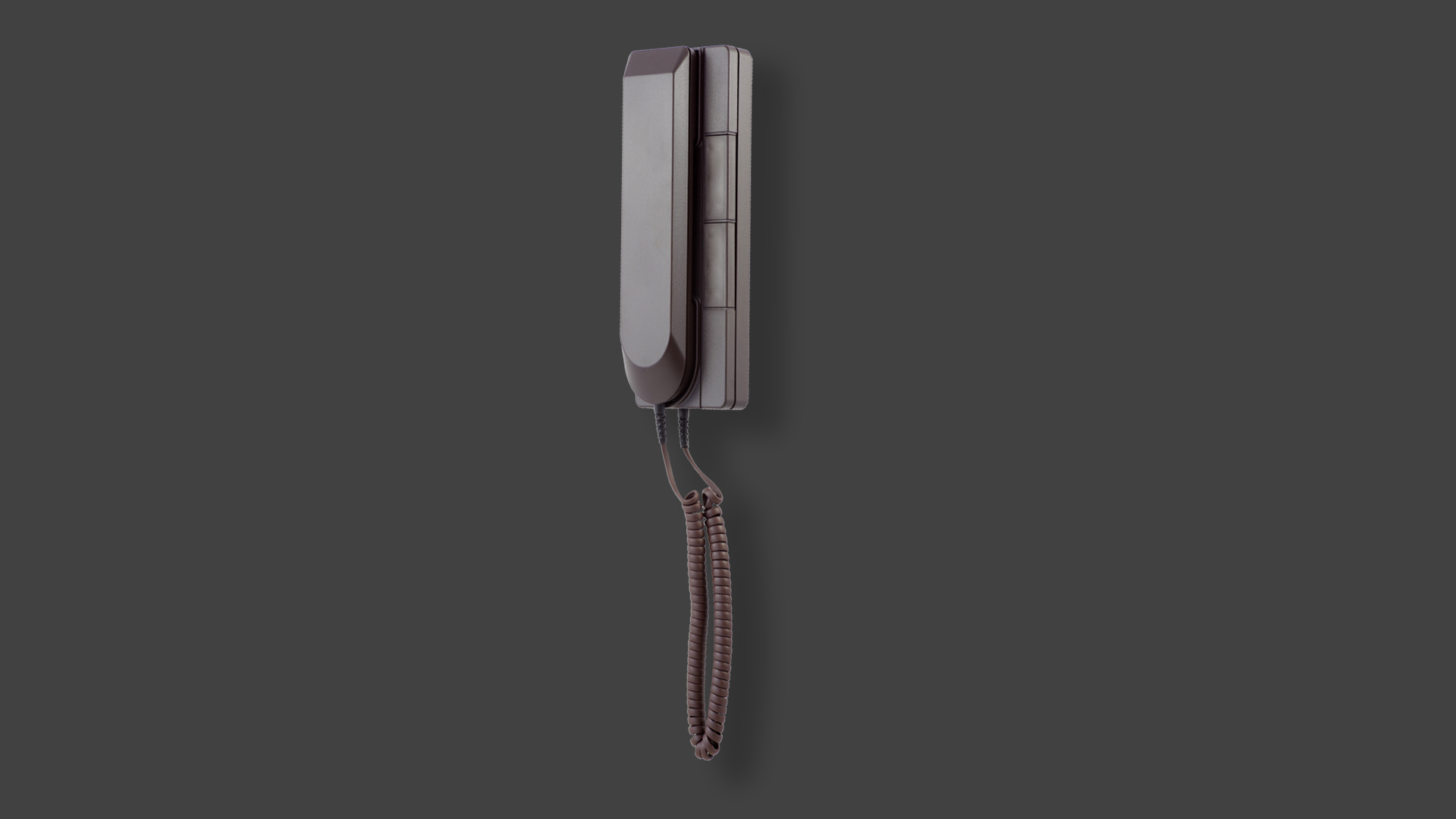

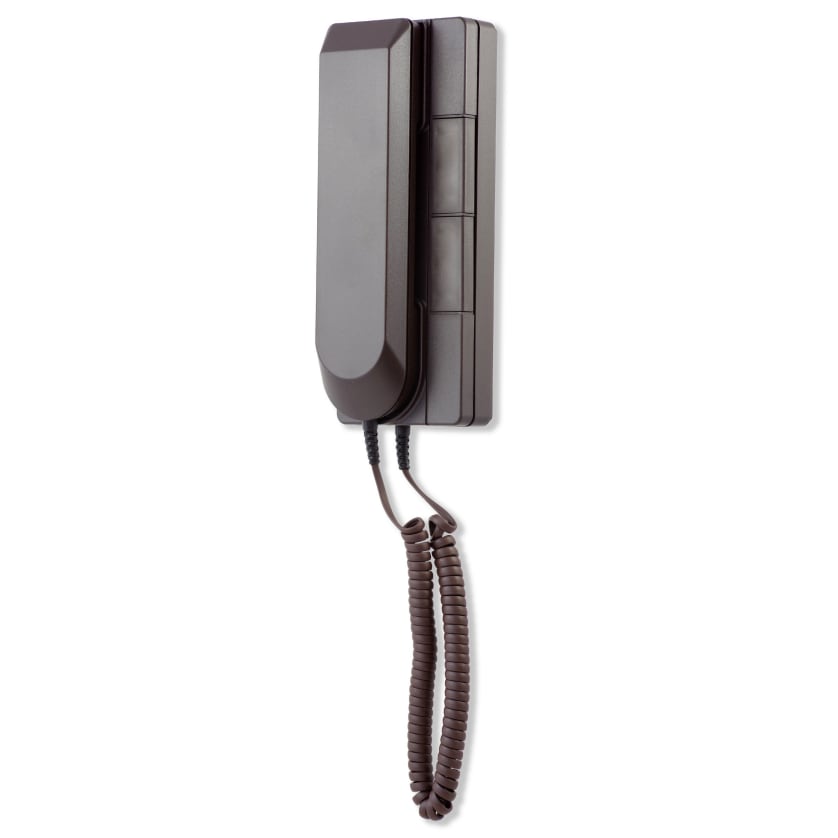

The SPM intercom unit enables communication between the machine room or a permanently occupied location and the lift car.
It is suitable for wall mounting, has an integrated buzzer and is compatible with the SPE1-P car intercom unit.
| nominal voltage | 12 V DC and 24 V DC |
| power consumption | 0 to 60 mA |
| connection | screw terminal 8-pole, max. 2.5 mm² |

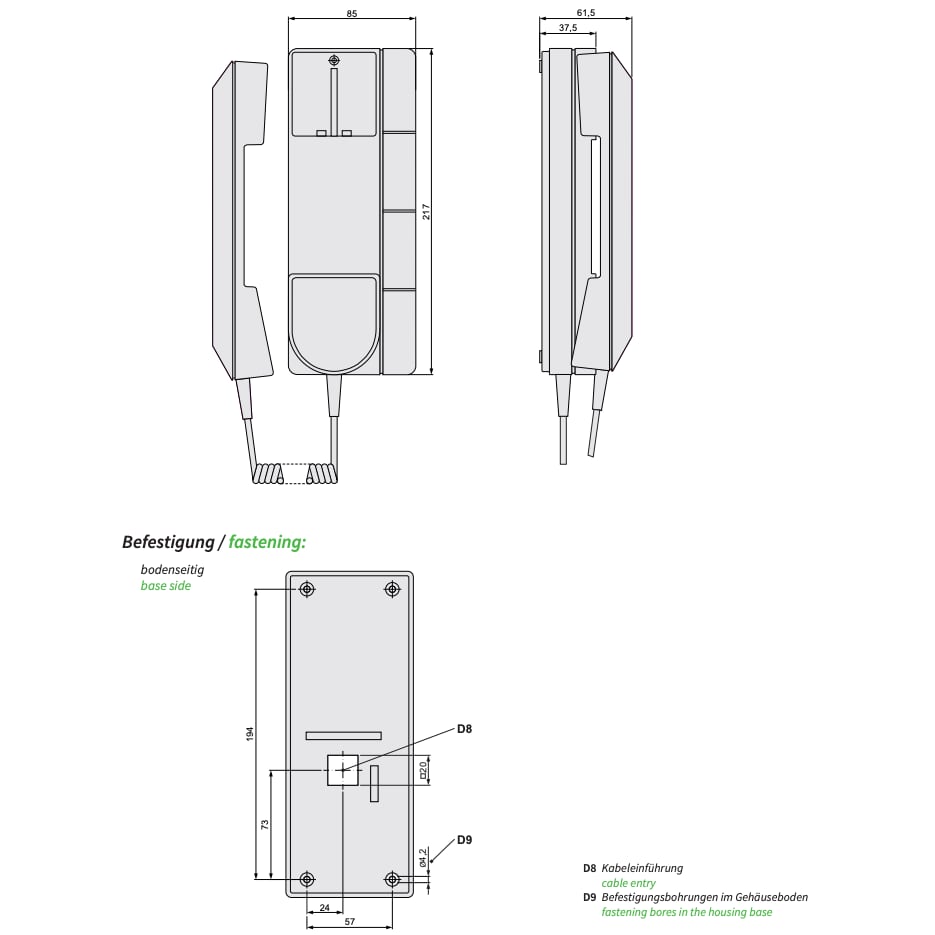

| installation position | at the wall or horizontal |
| level of protection | IP30 |
| ambient air temperature | 0 °C up to +50 °C |
