SPE1

car intercom unit

The SPE1 car intercom speech unit enables reliable communication between the lift car and the machine room. It convinces by its excellent sound, minimal feedback and infinitely adjustable volume and microphone sensitivity.
The unit is equipped with IP54 protection at the front, is compatible with other intercom units and can be combined directly with the SPM machine room intercom unit.

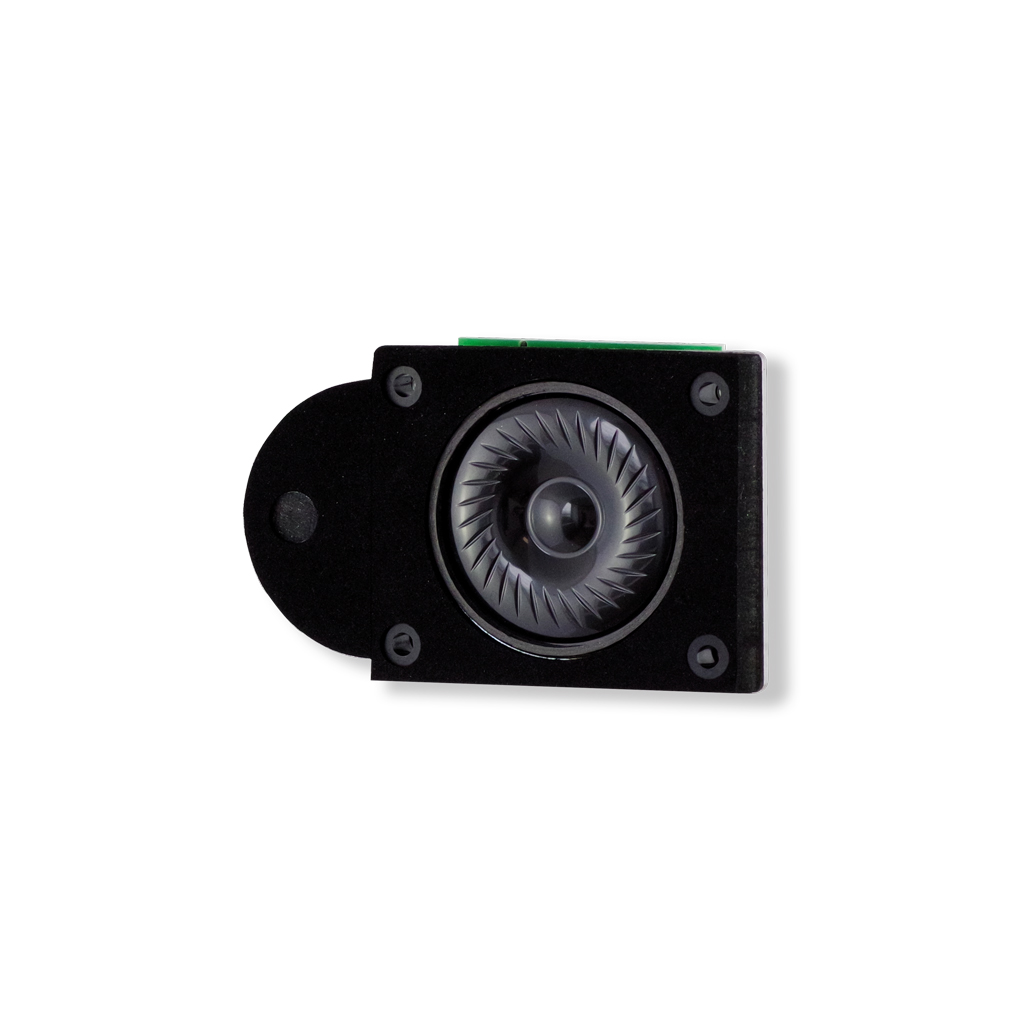

40-20-22-Slider-spe1-1

Geräteabmessungen

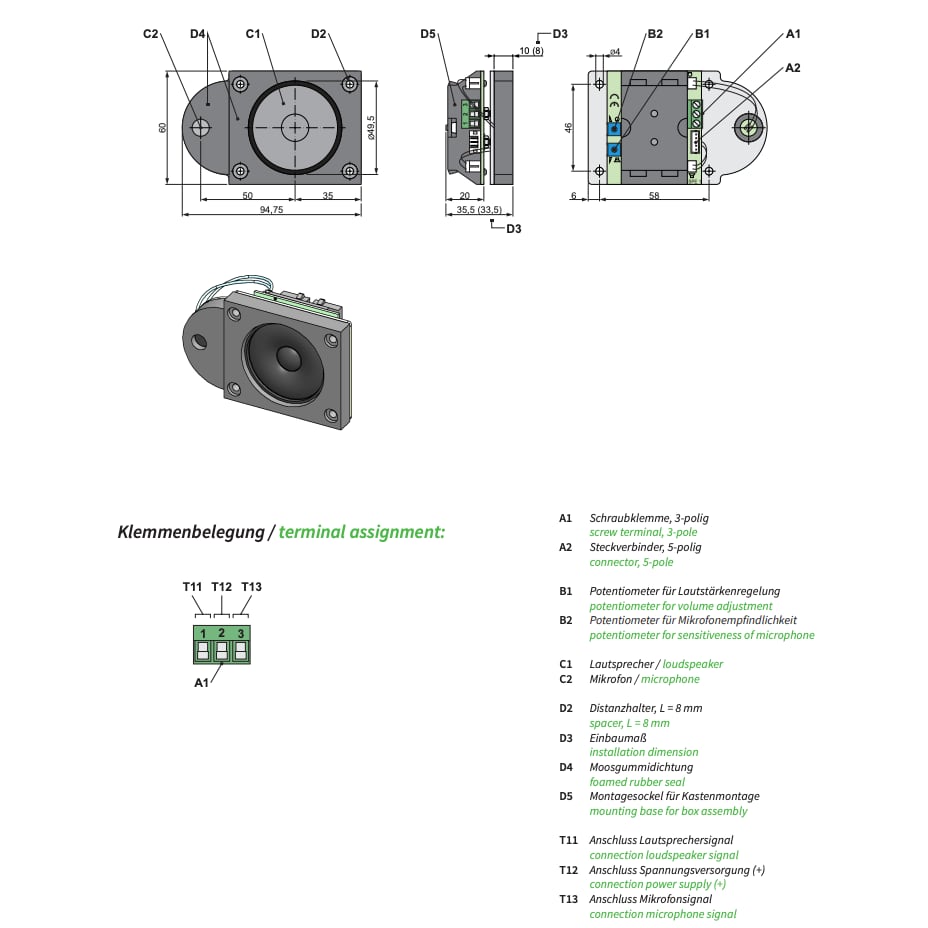

SPE1 Produktabmessungen

40-20-22-Slider-spe1-1

Geräteabmessungen

SPE1 Produktabmessungen

Merkmale:

  • for communication between the car and the machine room
  • front side level of protection IP54
  • excellent sound and minimal feedback
  • volume and sensitiveness of microphone infinitely adjustable
  • can be combined with the speech unit for the machine room SPM
  • compatible with different speech units
  • connection by 3-pole screw terminal or 5-pole connector

Bestellangaben:

Technische Daten:

nominal voltage dependent on the speech unit SPM (12 V DC or 24 V DC)
power consumption max. 20 mA
connection screw terminal 3-pole, max. 2.5 mm²
connector 5-pole
volume infinitely adjustable
microphone sensitiveness infinitely adjustable
level of protection front side IP54, IP00 rear side
ambient air temperature -20 °C up to +60 °C
