RKMO17

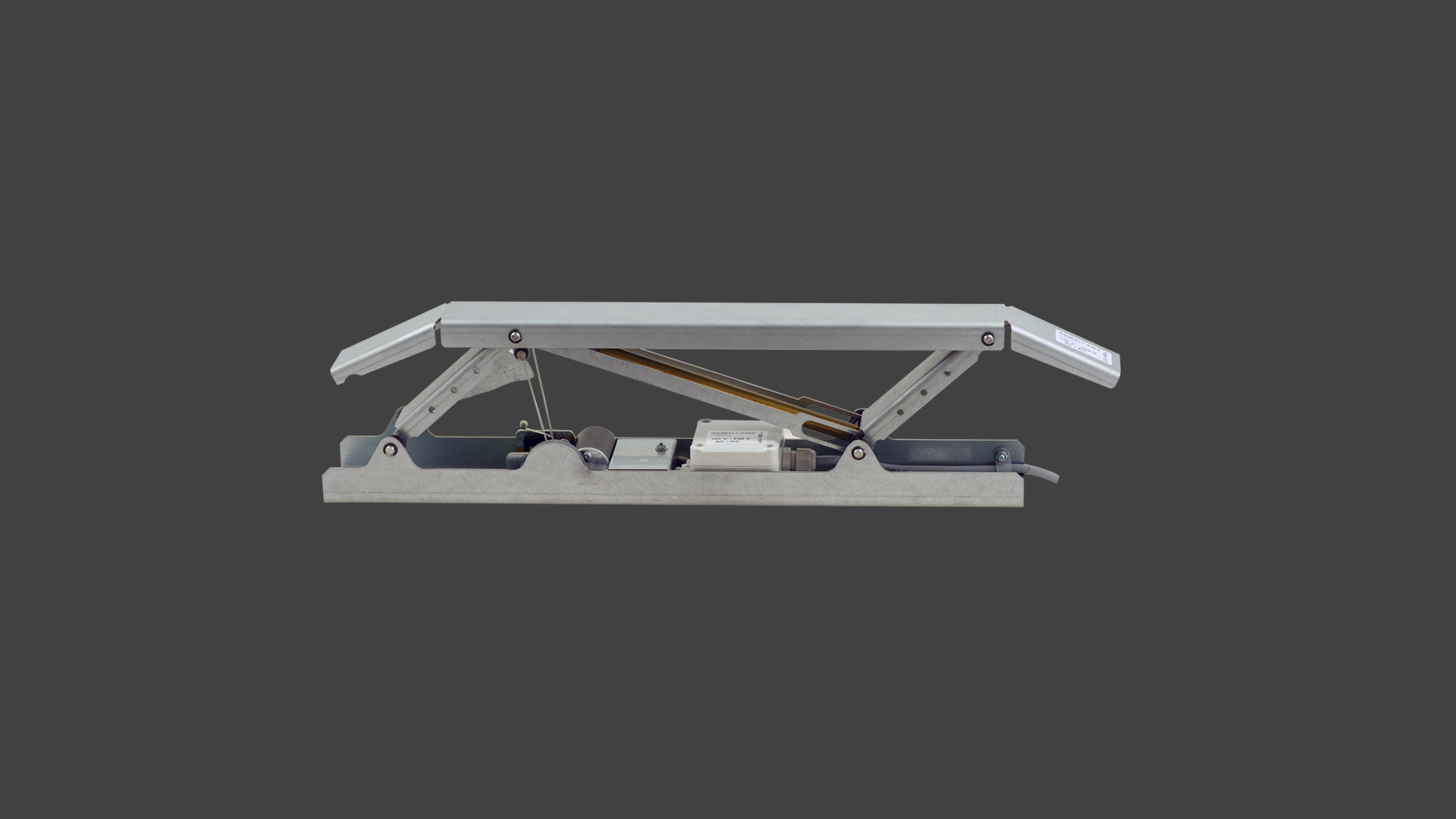

Retiring cam with motorized actuation RKMO17

The motor driven retiring cam RKMO is 1:1 compatible with the retiring cams of the EMT17/18 types and can therefore be easily integrated into existing systems.

It convinces by a barely perceptible noise when unlocking and locking. It is available as 100-250 V DC / AC wide-range voltage input and as 48 V AC / DC, 24 V DC and 24 V AC version.
This motorized retiring cam is also characterised by a low power consumption, high actuation force and a large adjustable stroke.

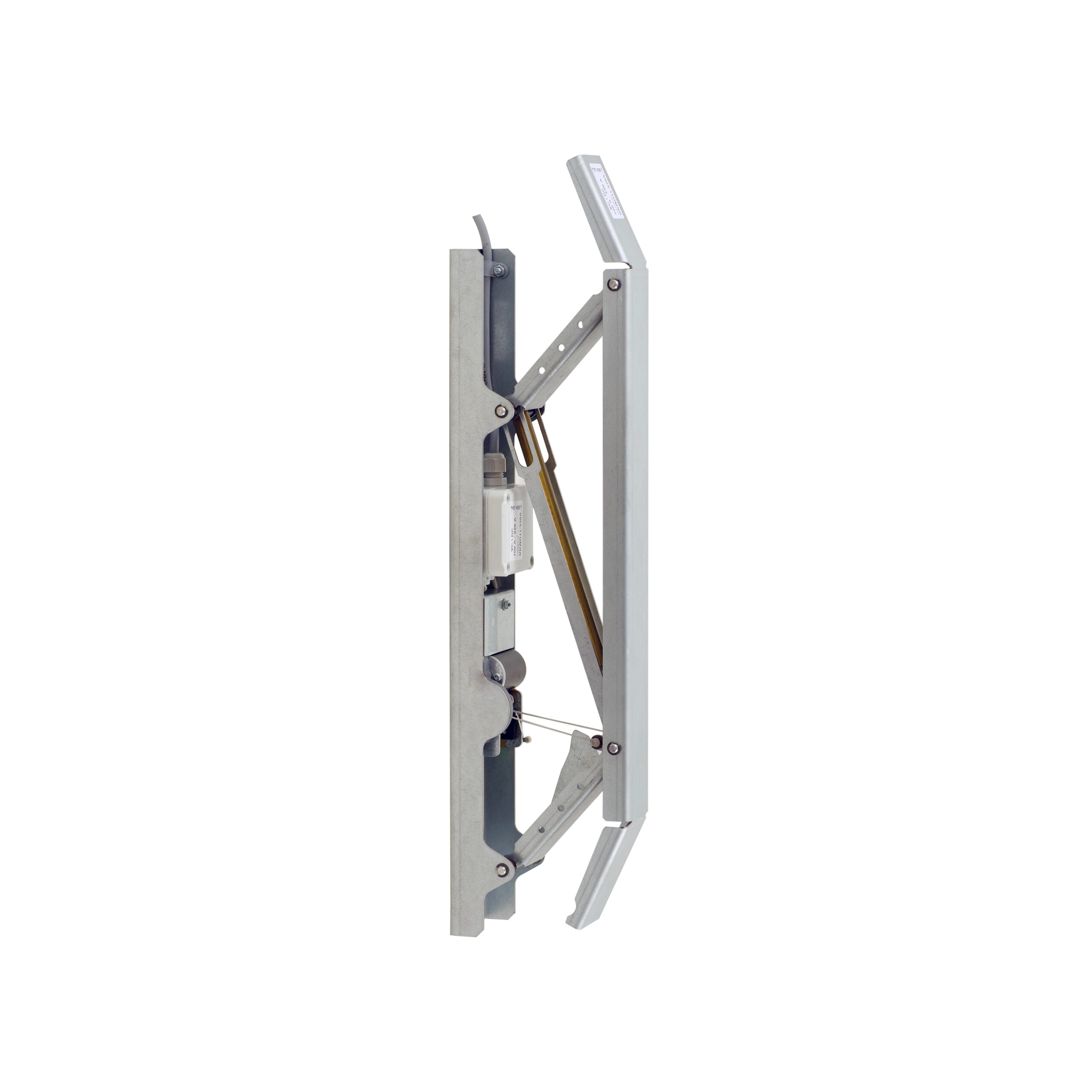

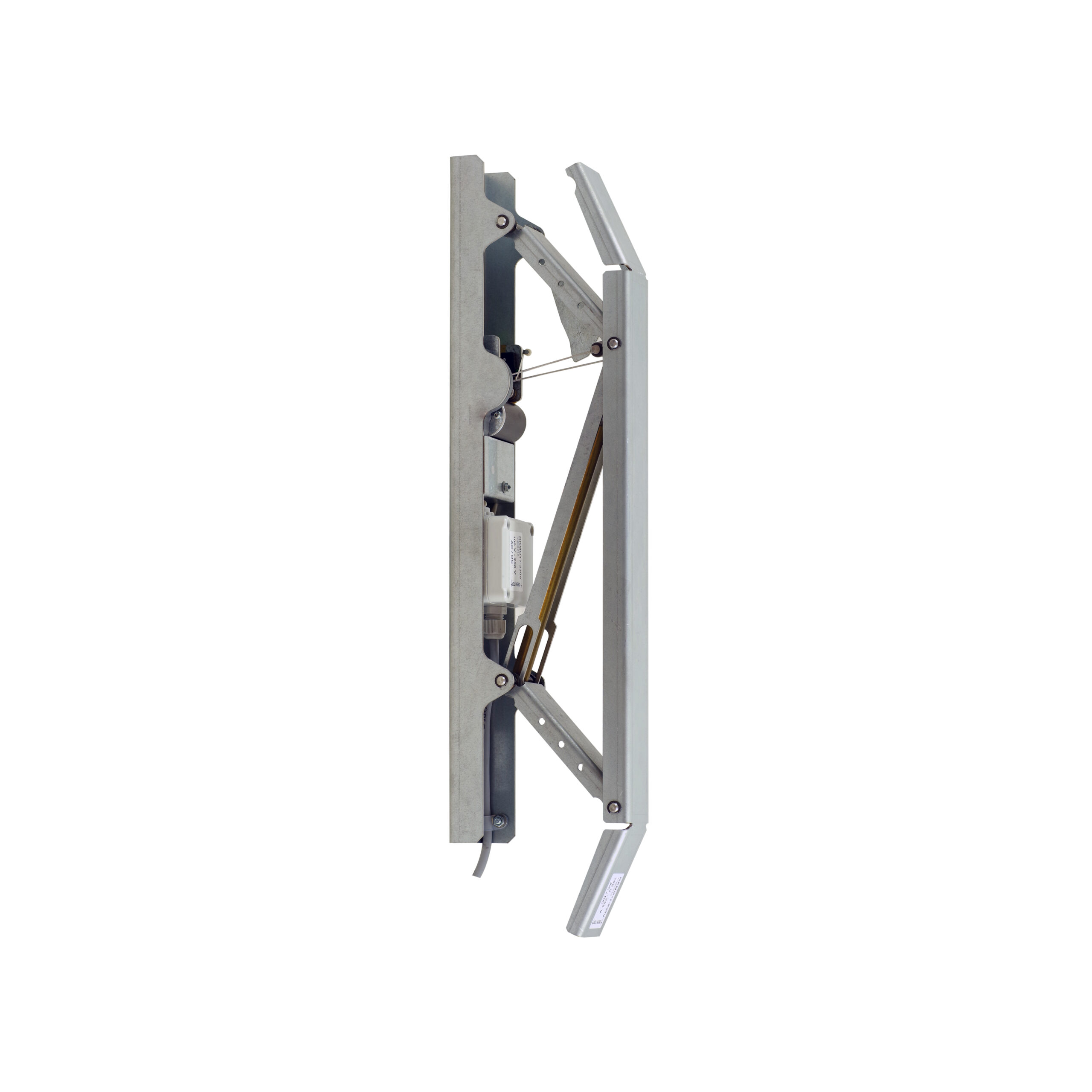

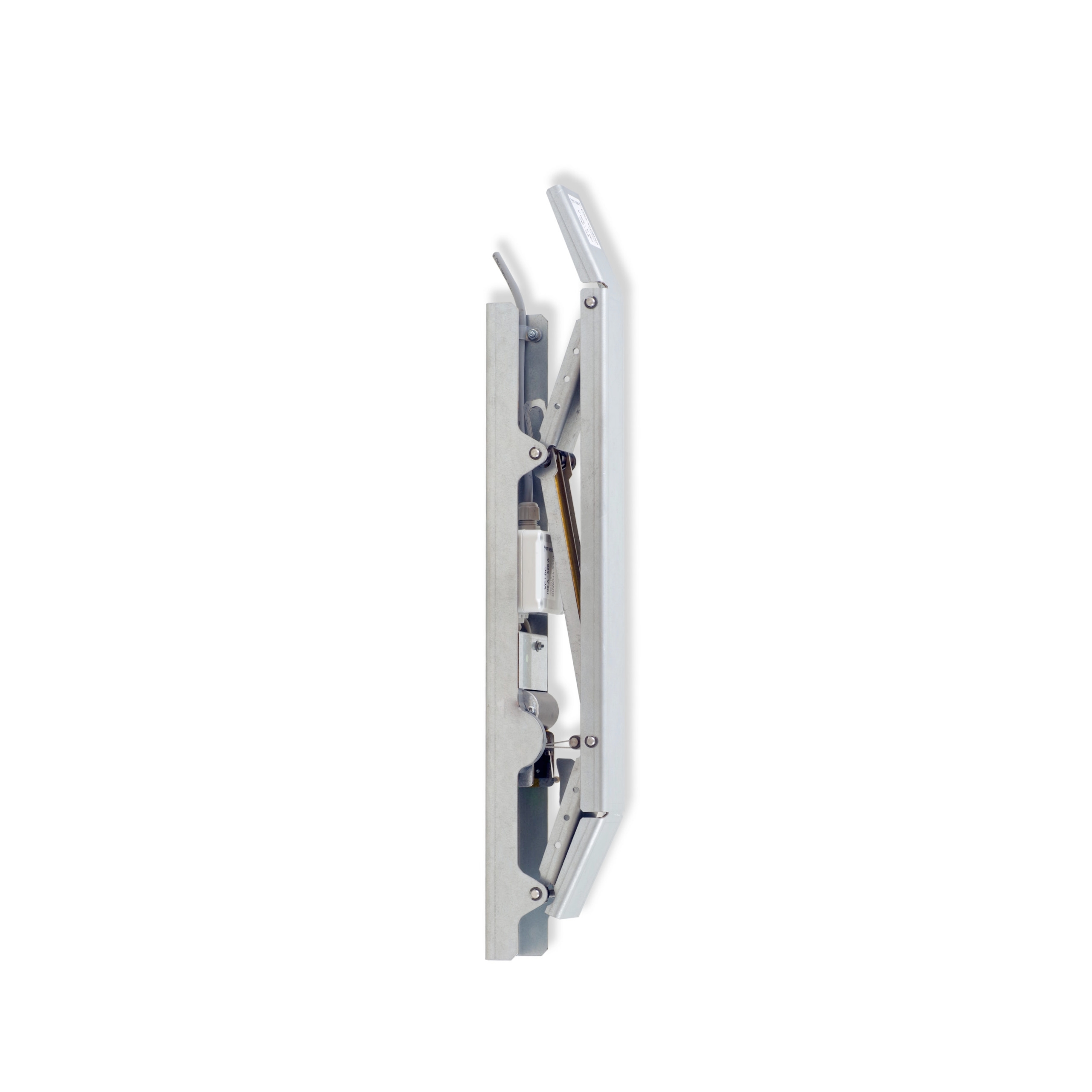

RKMO17 24 V, currentless

20-20-22-Slider-rkmo170-02

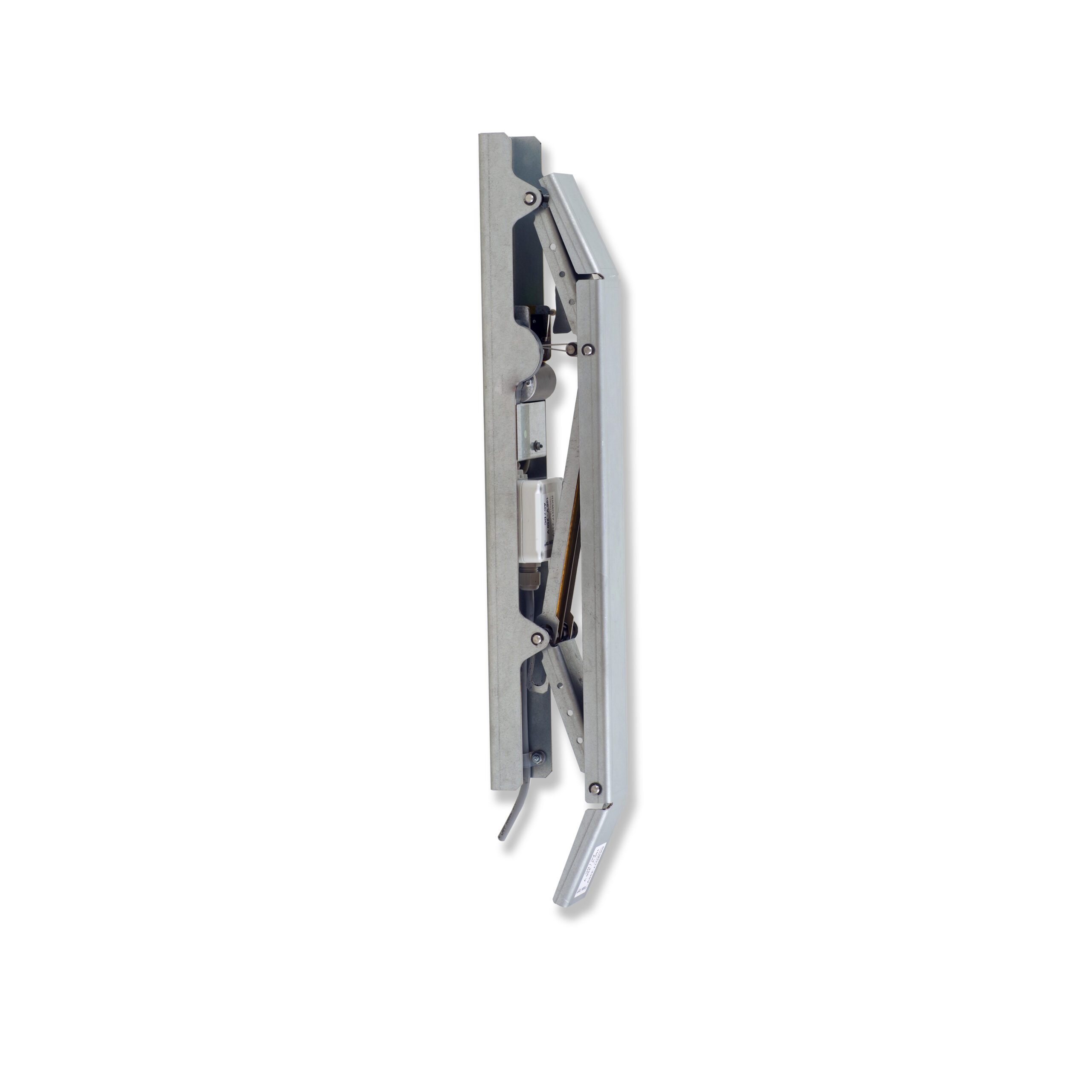

RKMO17 24 V, energised

20-20-22-Slider-rkmo170-04

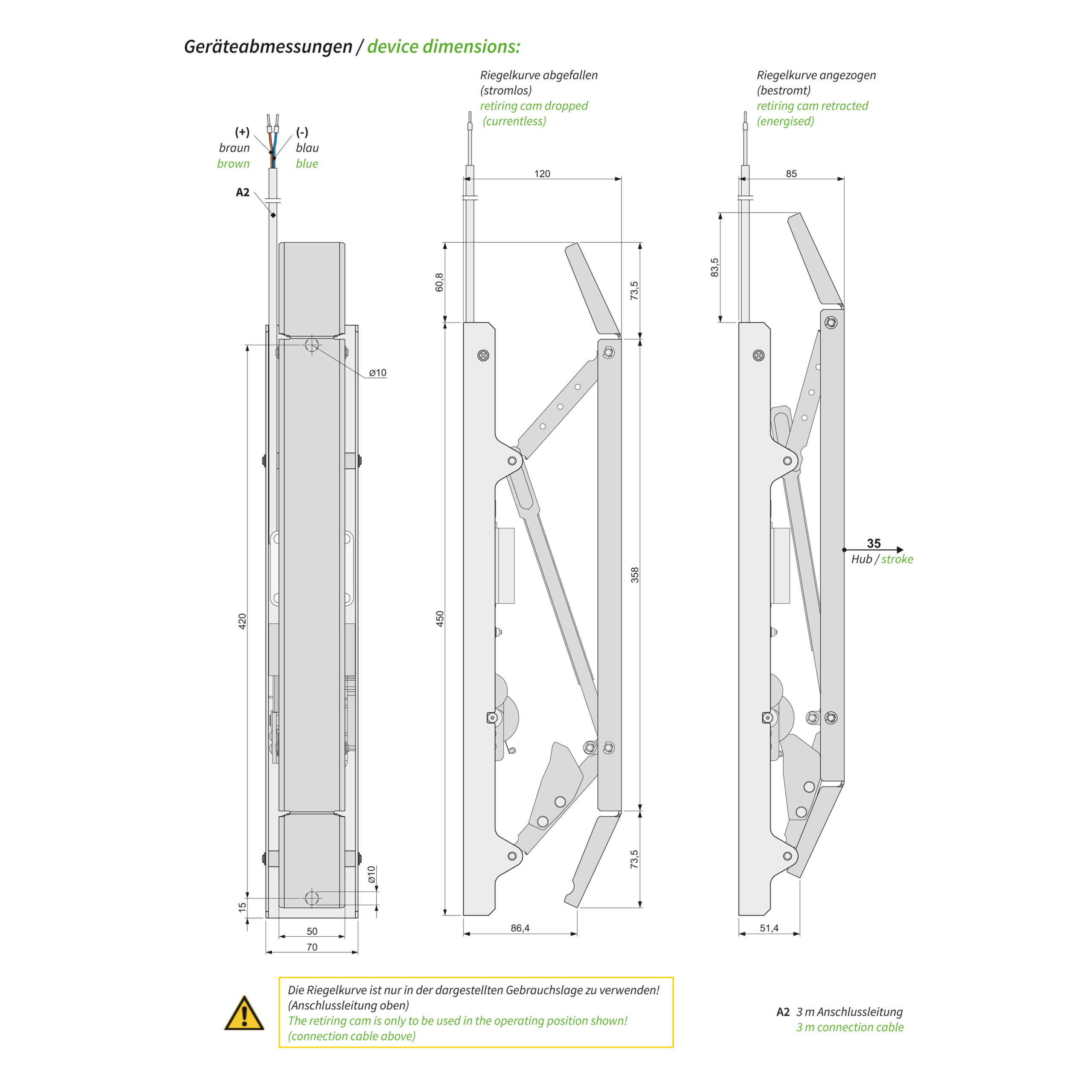

20-20-22-Slider-rkmo170-05

RKMO17 24 V, currentless

20-20-22-Slider-rkmo170-02

RKMO17 24 V, energised

20-20-22-Slider-rkmo170-04

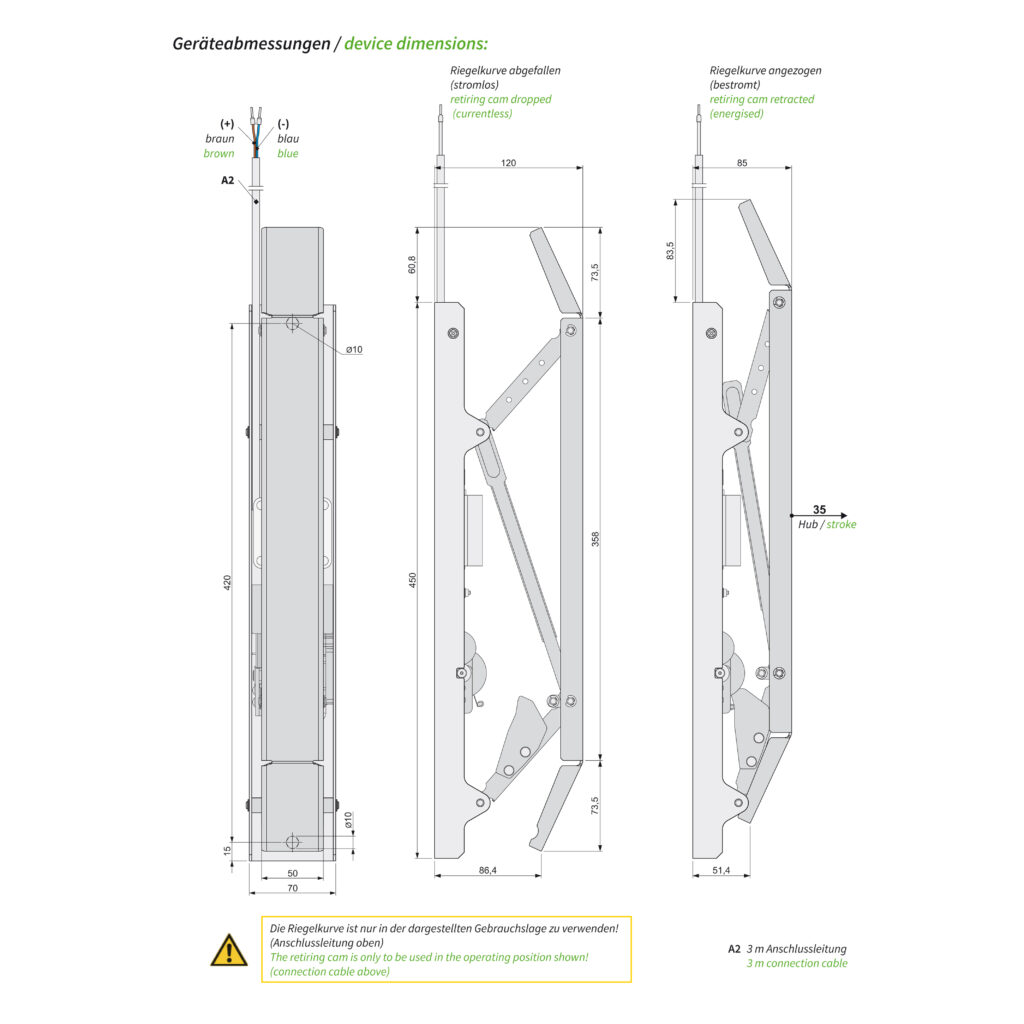

20-20-22-Slider-rkmo170-05

Features:

  • drive with maintenance-free three-phase motor
  • actuation force up to 60 N
  • stroke 35 mm
  • energy-saving due to low power requirement of only 0.22 A holding current at 24 V
  • duty cycle of any length (100 % duty cycle)
  • hardly perceptible unlocking and locking of the landing doors due to low noise emission
  • all steel parts galvanized

Order information codes:

Technical data:

duty cycle 100 %
total height energised / retracted 80 mm
currentless / dropped 120 mm
stroke 35 mm
actuation force 60 N
ambient air temperature -10 °C up to +45 °C
customary position vertical, motor drive above
RKMO17 – 230V:
nominal voltage
input current
connection
level of protection
weight
100 V – 250 V AC or DC (rectified alternating voltage)
max. 0.4 A at 230 V AC
3 m connection cable, 2 x 1 mm²
IP40, insulated
2.6 kg
RKMO17 – 48V:
nominal voltage
admissible voltage range
maximum peak voltage
pull-in / holding current
connection
level of protection
weight
48 V AC or DC
30 V – 55 V AC or DC
80 V
0.7 A / 0.15 A
3 m connection cable, 2 x 1 mm²
IP40
2.6 kg
RKMO17 – 24DC:
nominal voltage
admissible voltage range
maximum peak voltage
pull-in / holding current
retraction time
connection
wire assignment
level of protection
weight
24 V DC stabilised / regulated
22 V – 30 V DC
36 V
1 A / 0.22 A
< 1 s
3 m connection cable, 2 x 1 mm²
brown 24 V (+), blue 0 V (-)
IP40 (safety extra-low voltage)
2.6 kg
RKMO17 – 24AC:
nominal voltage
admissible voltage range
maximum peak voltage
pull-in / holding current
connection
level of protection
weight
24 V AC
22 V – 30 V AC or DC (pulsating or AC rectified)
43 V
1 A / 0.22 A
3 m connection cable, 2 x 1 mm²
IP40 (safety extra-low voltage)
2.6 kg

Downloads:

German

German

Catalogue

download download

German

German

Operating instructions

download download

Deutsch

Englisch

Französisch

Tschechisch
