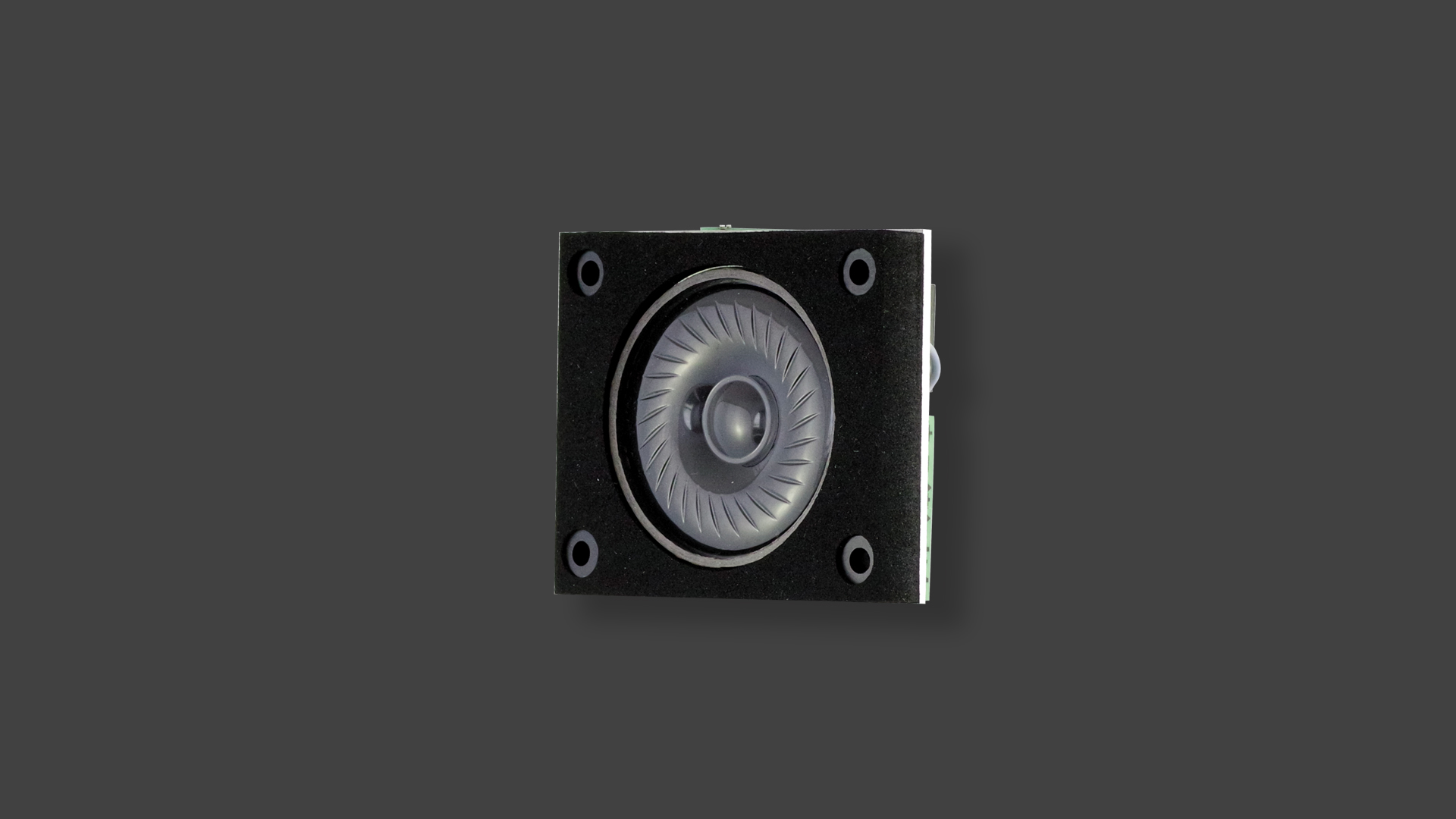

ELG6

electronic gong

The ELG6 electronic gong is used for acoustic signalling of the arrival of a lift car. Depending on the terminal assignment and control, it enables direction-dependent signalling in accordance with EN 81-70 – with one tone for ‘up’ and two tones for ‘down’ – or a direction-independent sound sequence with 1, 2 or 3 tones.
The ELG6 has a continuously adjustable volume and offers IP54 protection from the front side.

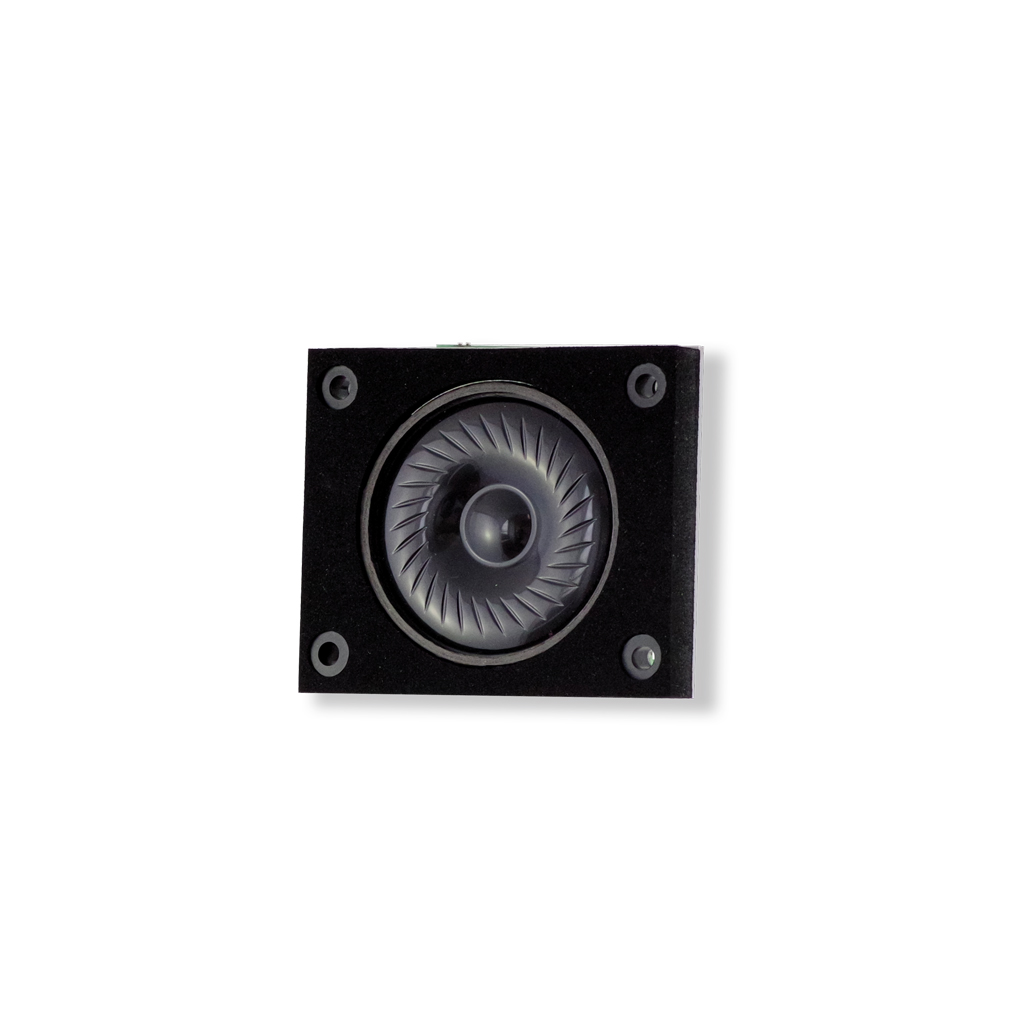

ELG6

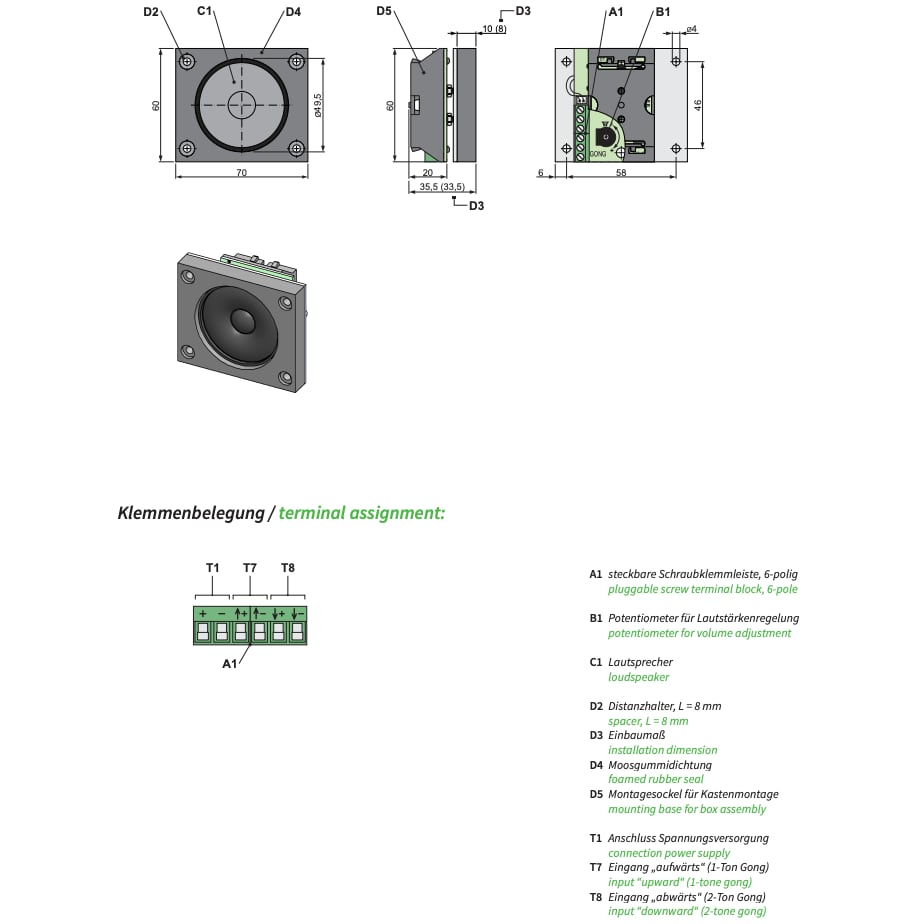

device dimensions

ELG6

device dimensions

Features:

acoustic notification of the arrival of a lift car in the waiting area in front of the lift
various functions can be implemented, depending on the terminal assignment and control:
- a) direction-dependent acoustic signalisation of the next travel direction according to EN81-70
  - 1-tone gong for “up”
  - 2-tone gong for “down”
- b) direction-independent signalisation with a choice of 1-, 2- or 3-tone sound sequence
suitable for common anode and common cathode
infinitely adjustable volume
front side level of protection IP54
connection by screw terminal or optionally by plug connector

Order information codes:

Technical data:

nominal voltage	24 V DC
power supply	10 – 30 V DC
power consumption	30 mA
volume	infinitely adjustable
signalisation	1-tone gong “up“ 2-tone gong “down“ 3-tone gong “up+down“
connection	screw terminal 6-pole, max. 2.5 mm² optional connector 3-pole
level of protection front side	IP54, IP00 rear side
ambient air temperature	-20 °C up to +60 °C
