BS-SEIT

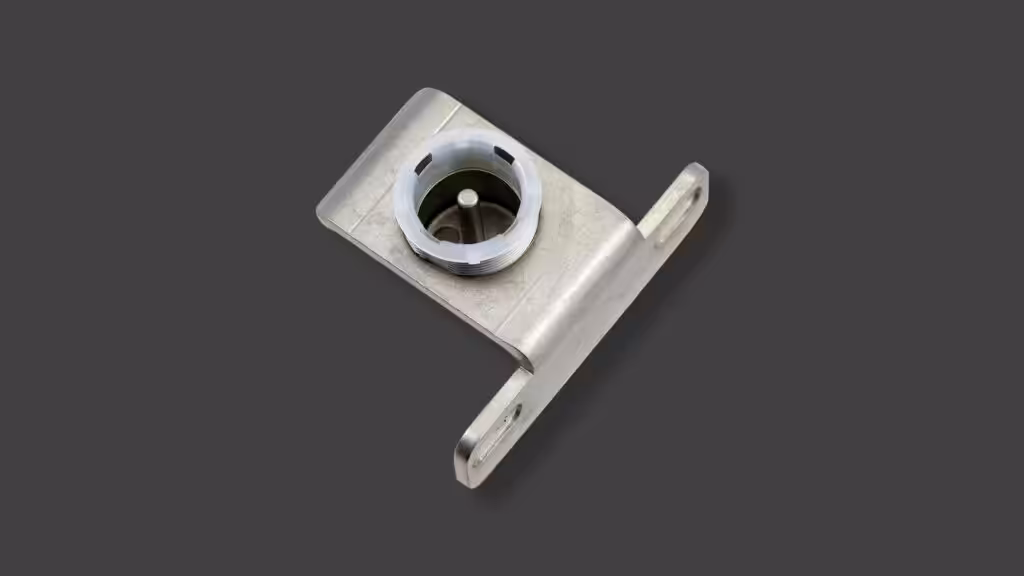

Latch plate for lateral fixation

The version BS-SEIT is designed for lateral flanging to the door that is to be locked and is therefore ideally suited for modernisation solutions. The latch plate core is adjustable in height which allows a flexible adaptation to the situations on site.

171_tv_zub_bs-seit

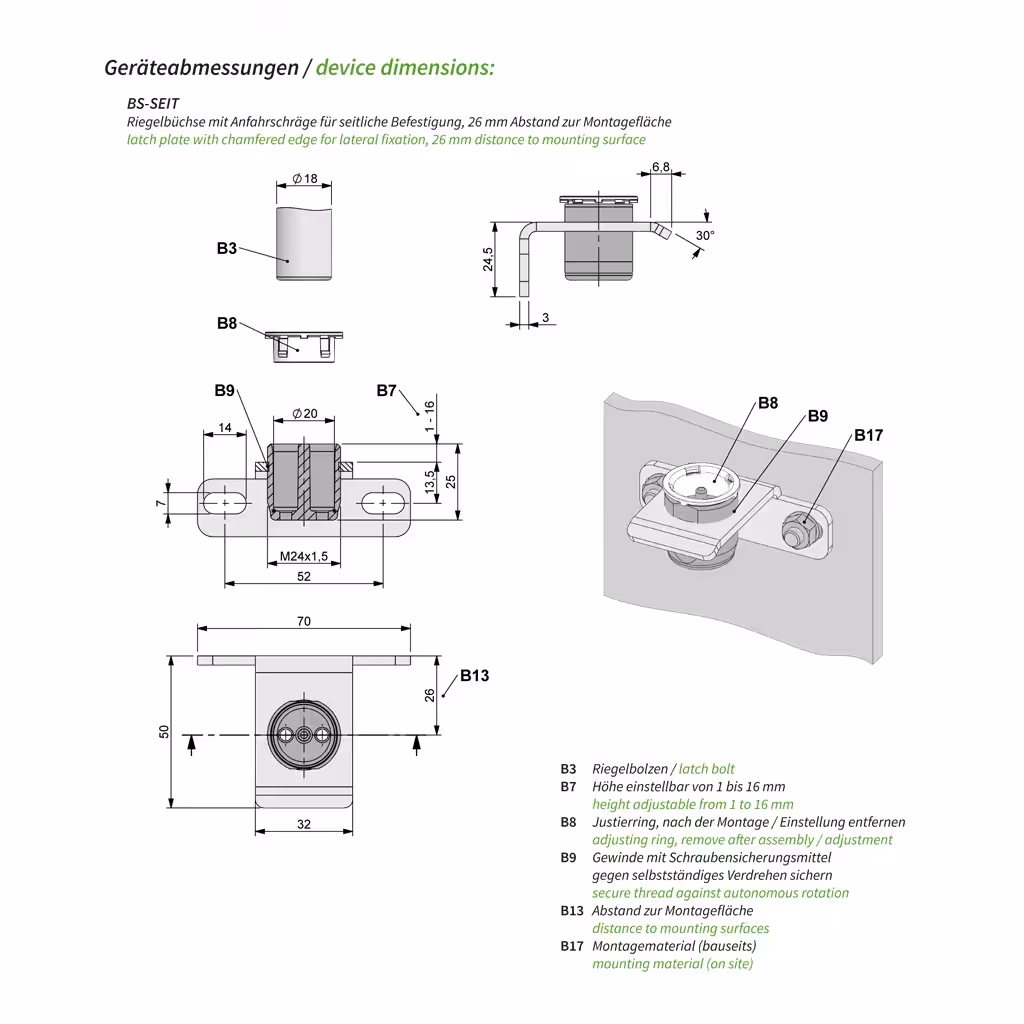

172_tv_zub_bs-seit_dim

173_tv_zub_bs-seit1

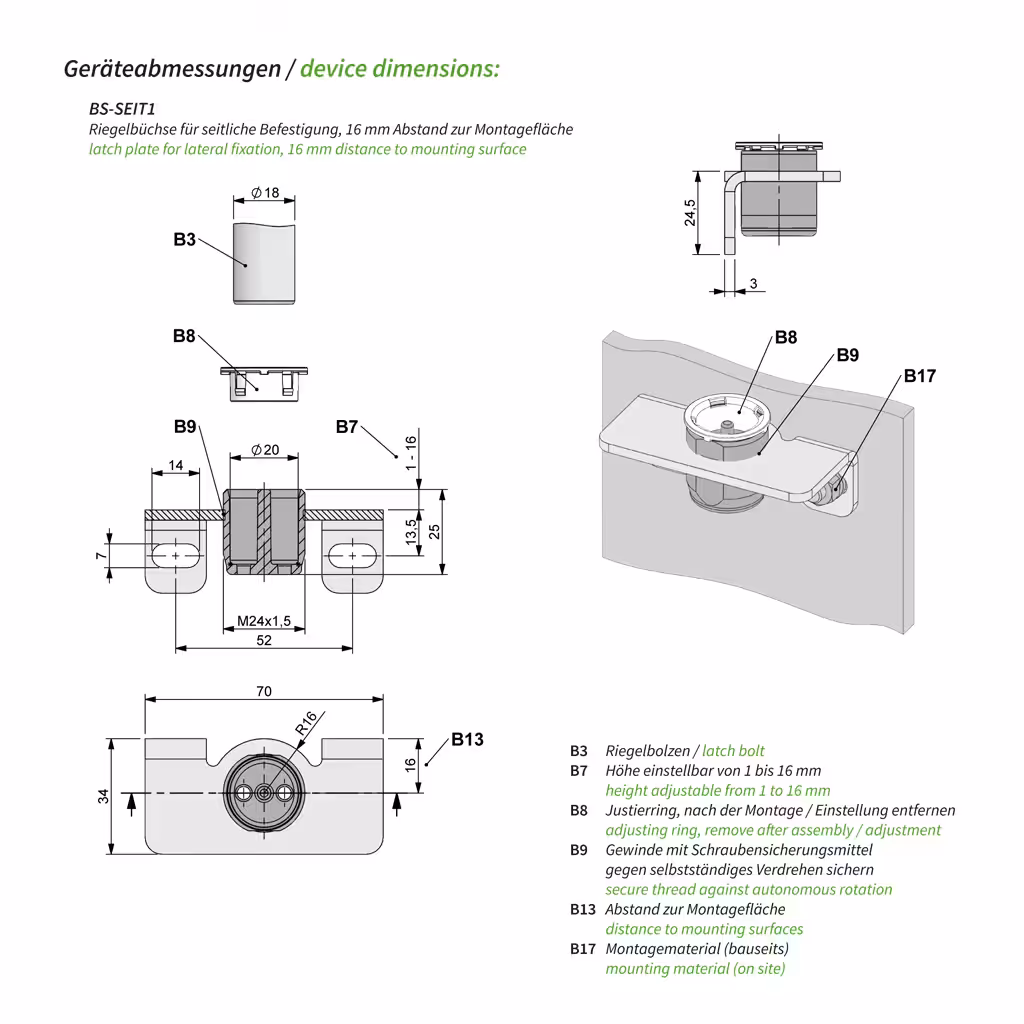

174_tv_zub_bs-seit1_dim

171_tv_zub_bs-seit

172_tv_zub_bs-seit_dim

173_tv_zub_bs-seit1

174_tv_zub_bs-seit1_dim

Merkmale:

  • latch plate for
    – holding the latch bolt of a door interlock
    – actuation of the faulty closure device
    – mounting at the outside of the door leaf
  • center part height adjustable, allows compensation of different sheet thicknesses and
    readjustment at misalignment of the door
  • anti-rotation protection against autonomous readjustment of the center part has to be ensured
    by the customer with loctite or alike
  • adjusting ring included in the scope of delivery

Bestellangaben:

Technische Daten:

enclosure zinc diecast, stainless steel
customary position any
ambient air temperature -30 °C up to +80 °C
weight BS-SEIT = 74 g
BS-SEIT1 = 76 g
